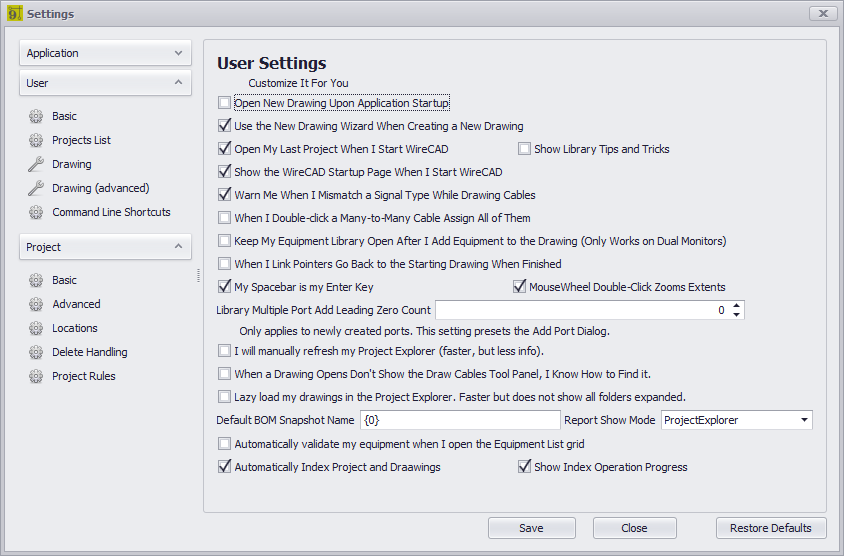

Application Menu > Settings

Commandline: set



Explanation

The Settings dialog is comprised of the following sections:

•Application - settings that determine the behavior of WireCAD for this machine. These settings are stored in the Global Application Data folder as ApplicationSettingsX.xml.

 Basic

 WireCAD Security

 Global Database Location

 Support Paths

 Organization

 Enable/Disable Plugins

 Todo List

•User - settings specific to your user profile on this machine as UserSettingsX.xml.

 Basic

 Projects List

 Drawing

 Drawing (advanced)

 Command Line Shortcuts

 Enterprise CMS (ENT Only)

 Expert Mode

•Project - settings specific to the current project. These settings are stored in the project folder as ProjectSettingsX.xml.

 Basic

 Advanced

 Locations

 Delete Handling

 Enterprise CMS

 Export Settings

 Project Rules

 Status Behavior



NOTE: These are the stock basic settings panels. Third party developers may register their own settings panels. See their documentation.







Prerequisites

None



Dialog Options

•Save - Commit your changes and issue a SettingsChanged command to the application.

•Close - Do nothing and discard your changes.

•Restore Defaults - Restore the defaults of the current settings panel.
