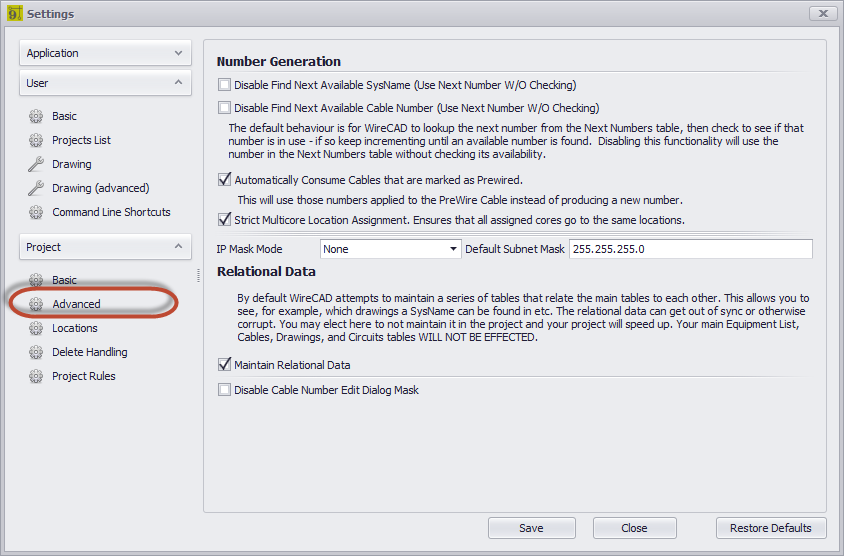

Project - Advanced Panel Options

•Disable Find Next Available SysName, Disable Find Next Available Cable Number - The default behavior is for WireCAD to look-up the next number from the Next Numbers table, then check to see if that number is in use - if so keep incrementing until an available number is found.  Disabling this functionality will use the number in the Next Numbers table without checking its availability.

•Automatically Consume Prewire Cables - This will use those numbers applied to the PreWire Cable instead of producing a new number.

•Strict Multi-core Assignment - Enforces a policy that all cores in each end of a multi-core cable must originate from the same location.

•IP Mask

•Maintain Relational Data - See this discussion on Understanding Indexes. Disabling this will not disable the indexing function if you call Re-index but will not attempt to initiate the data in real time.

•Disable Cable Number Edit Dialog Mask - If you find the masking of the Edit Cable Data Cable Number textbox to be cumbersome you can disable it here. This also disables the mask on the SysName assignment dialog.
