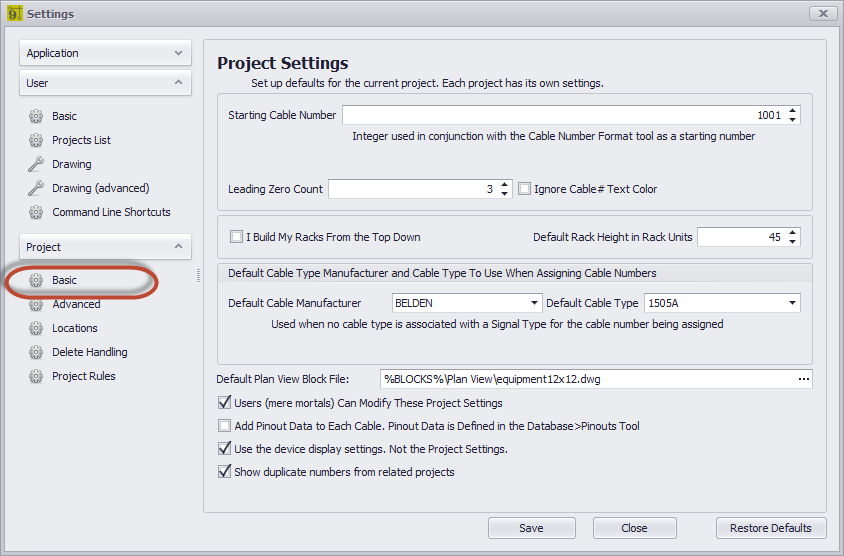

Basic Panel Options

•Starting Cable Number - The default starting number of ALL sequences.

•Leading Zero Count - How many leading zeros in SysNames and Cable Numbers.

•Ignore Cable # Text Color - Does not color the Cable Number text entities.

•I Build My Racks From the Top Down, Default Rack Height

•Default Cable Type - This is the default of defaults. The Project Signal Types table can override this.

•Default Plan View Block File - If no Plan View File is defined on the Equipment definition then this will be used by the Populate Equipment function in the Plan View Tools.

•Users (mere mortals) Can Modify These Project Settings - If you can see and edit this you are a WireCAD Administrator or have not set up WireCAD Security.

•Add Pinout Data to Each Cable - Allow pinout data to be attached to a cable as it is being assigned. The pinout criteria must match in order to be a candidate for inclusion in the list of available pinouts for a cable.

•Use the device display settings - This setting prioritizes any Equipment Library device settings saved with the device over the settings saved for the project.

•Show duplicate numbers from related projects - Only if Verbose assignments are being done.
