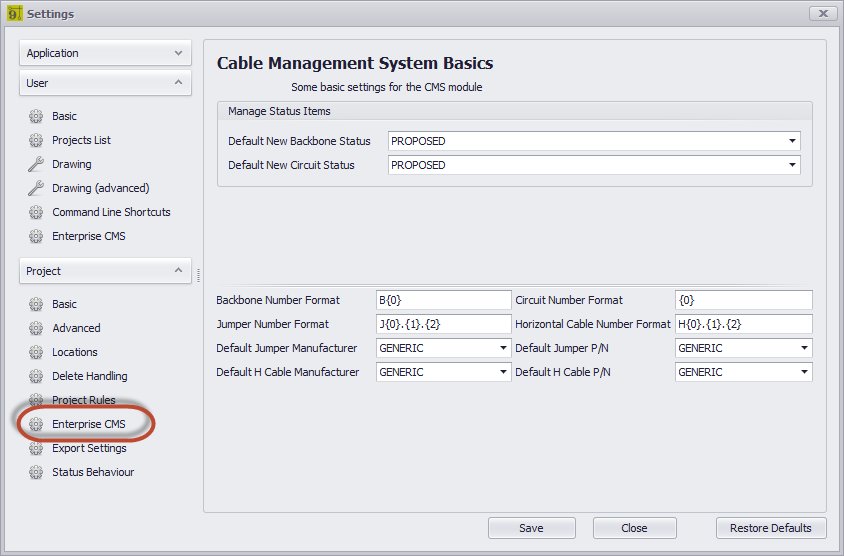

Enterprise CMS Panel Options

•Manage Status Items - When creating a backbone, you have the ability to mark a "status" on that backbone such as "In Use", "Proposed" ETC. The Status Behavior settings panel defines the Status Items in the list.

•Backbone Number Format - The variable {0} contains the next number in the Next Numbers grid for Backbones. Define the string format of the next Backbone number.

•Jumper Number Format -

 The variable {0} contains the Circuit base number.

 The variable {1} contains the Strand Number of the circuit for this jumper

 The variable {2} contains the Ordinal Number of the circuit for this jumper.

 Define the string format of the next Jumper number.

•Default Jumper Manufacturer and P/N, Default Horizontal Cable Manufacturer and P/N

•Circuit Number Format - The variable {0} contains the next number in the Next Numbers grid for Circuits. Define the string format of the next Circuit number.

•Horizontal Cable Number Format - The variable {0} contains the next number in the Next Numbers grid for Horizontal Cables. Define the string format of the next Horizontal Cable number.
