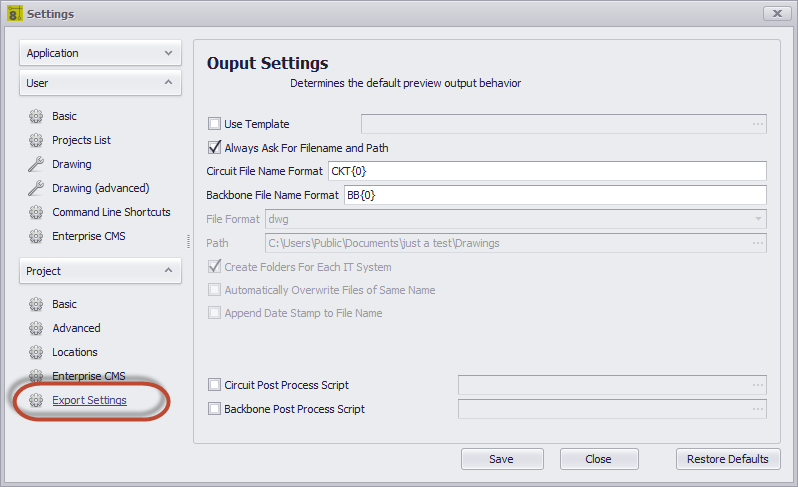

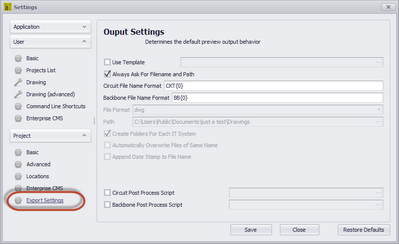

Project - Export Settings Panel Options

•Use Template - Path to a template drawing that the output will be exported into. Your template drawings can contain any page borders or layouts and settings that you wish.

•Always Ask for FileName and Path - You will be involved in the filename selection and path.

•Circuit FileName Format - Sets the file name format for Circuit output. {0} = Circuit Name.

•Backbone FileName Format - Sets the file name format for Backbone output. {0} = Backbone Number.

•File Format - Presets the output format.

•Path - Where do we output.

•Create Folder for Each IT Systems

•Automatically Overwrite Files of Same Name

•Append Date Stamp to FileName

•Circuit Post Process Script, Backbone Post Process Script - Path to a c# file which will be run post export but pre write-to-disk. See the Post Process Scripts topic for more information.
