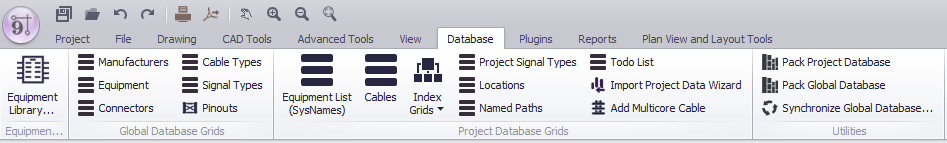

No environments currently merge with this tab. This is the default view but Plugins may register additional commands.
•Equipment Library - Show the global Equipment Library.
•Manufacturers - Show the global Manufacturers Grid.
•Equipment - Show the global Equipment Grid.
•Connectors - Show the global Connectors Grid.
•Cable Types - Show the global Cable Types Grid.
•Default Signal Types - Show the Default Signal Types Grid. This grid defines many default behaviors like cable color and default cable type. For more information see this topic on Signal Types.
•Pinouts - Show the global Pinouts tool.
•Equipment List - Show the project Equipment List. This is the collection of all SysNamed equipment across all drawings in the project.
•Backbones - Show the project Backbones grid. (ENT ONLY). This is the collection of all Backbones in the project.
•Circuits - Show the project Circuits grid. (ENT ONLY). This is the collection of all Circuits in the project.
•Cables - Show the project Cables grid. This is the collection of all Cables in the project.

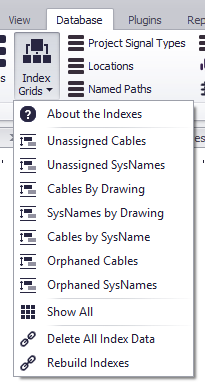

•Index Grids > For more information see this topic. This sub menu will show any or all of the index grids and allow you to delete and rebuild the indexes.
•Project Signal Types - Show the Project Signal Types grid. This grid has priority for Signal Types. If a signal type is not found in this database it is pulled from the Default Signal Types grid.
•Locations - Show the project Locations grid. This is the collection of all Locations in the project.
•Named Paths - Show the project Named Paths grid. This is the collection of all Named Paths in the project.
•Todo List - Show the project Todo List.
•Import Project Data Wiz - Show the project Import Data Wizard. This tool allows you to import cable and equipment data from other sources.
•Add Multicore Cable - Displays the Add Multi-core Cable dialog. There you select the cable type number base, etc. and build an entry in the Cables table for every core in the associated cable type marking the records available.
•Pack Project Database - This file base database utility will compress and reorganize your project database.
•Pack Global Database - This file base database utility will compress and reorganize your global database.
•Synchronize Global Database - Show the global database Synchronizer tool. This tool allows you to import/export/merge two global databases of either SQL,VISTA, or SQL Azure.
