Database > Pinouts
Commandline: po

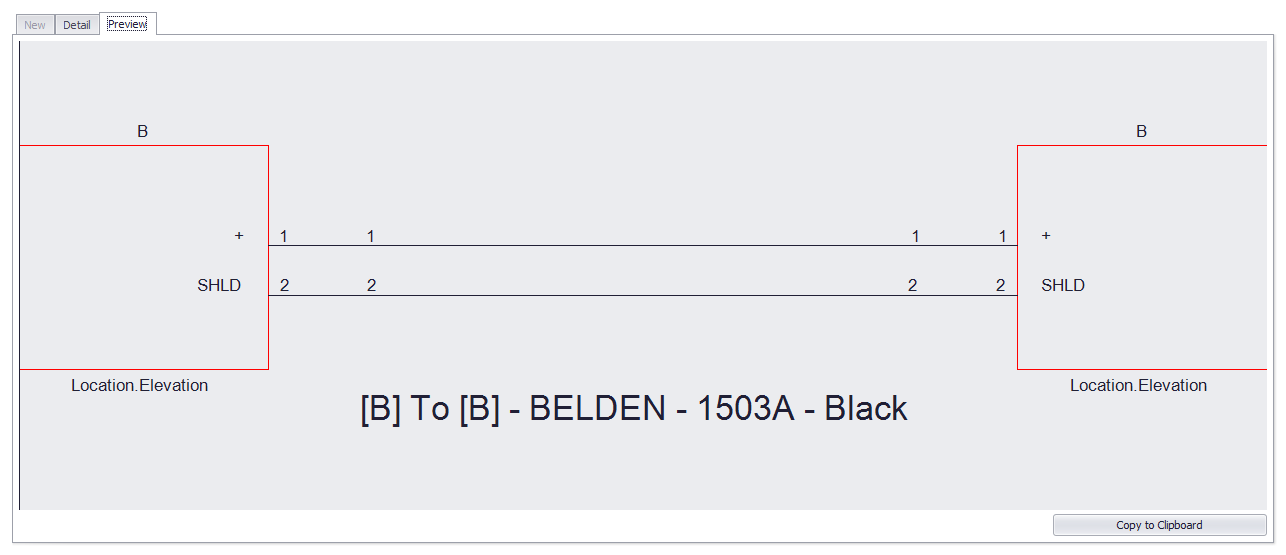

This tool provides access to the Pinouts table of the Global Equipment database. The concept of the Pinouts tool is to create a data set that describes two connectors and the conductors between them. The Cable Type data needs to have conductor level data. The data may be attached at the project level to a cable. The data can also be churned into a preview.
Prerequisites
1.None
Related Topics

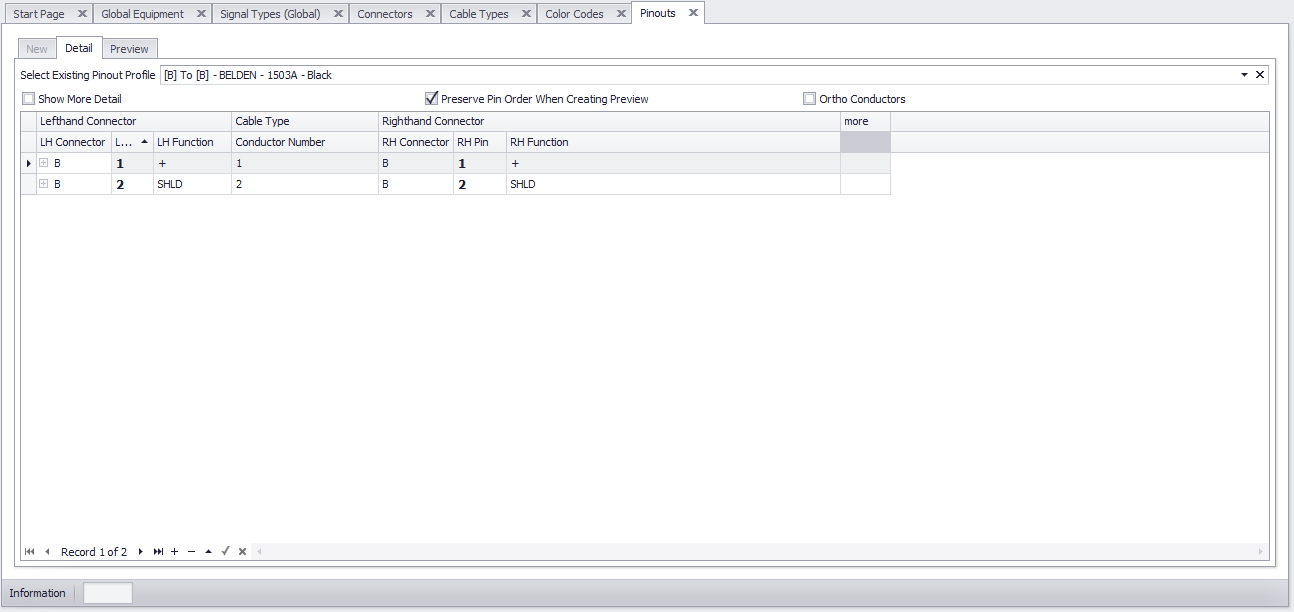

•Select Existing Pinout Profile - Select a named pinout to fill the grid and subsequent preview.
•Show More Detail
•Preserve Pin Order When Creating Preview, Ortho Conductors - How is the Preview created.
•Pinout Grid

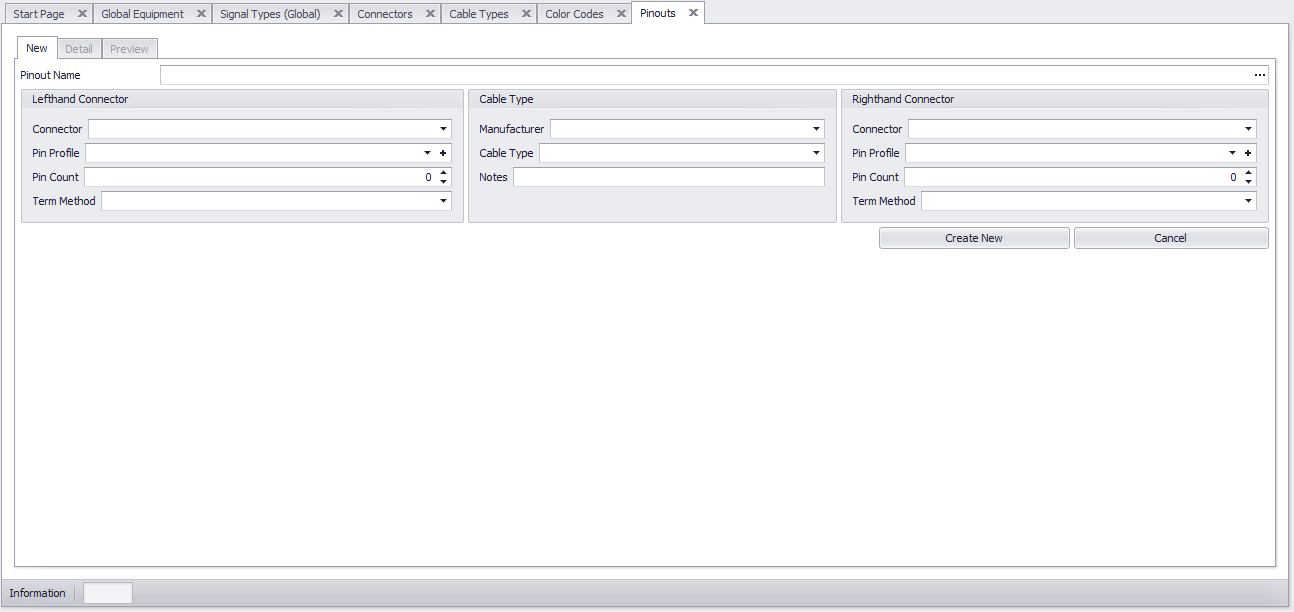

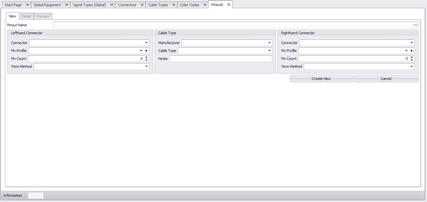

Clicking the File > New button enables the New tab. From here you enter the overall data for the pinout. The Left-hand and Right-hand connectors conductor counts, etc. Once the pinout is created you can edit the detail in the Detail tab.
•Left hand Connector Info -Enter the connector type, pin profile (if any) and count.
•Cable Type - Select the Cable Type. Remember this type must have conductor level data. Core Level data alone will not suffice here.
•Right hand Connector Info - Enter the connector type, pin profile (if any) and count.
Click File > Save to commit your changes and switch back to the grid view.
