Database > Default Signal Types

Commandline: st



Explanation

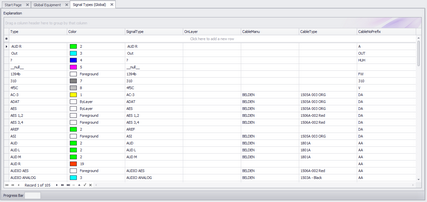

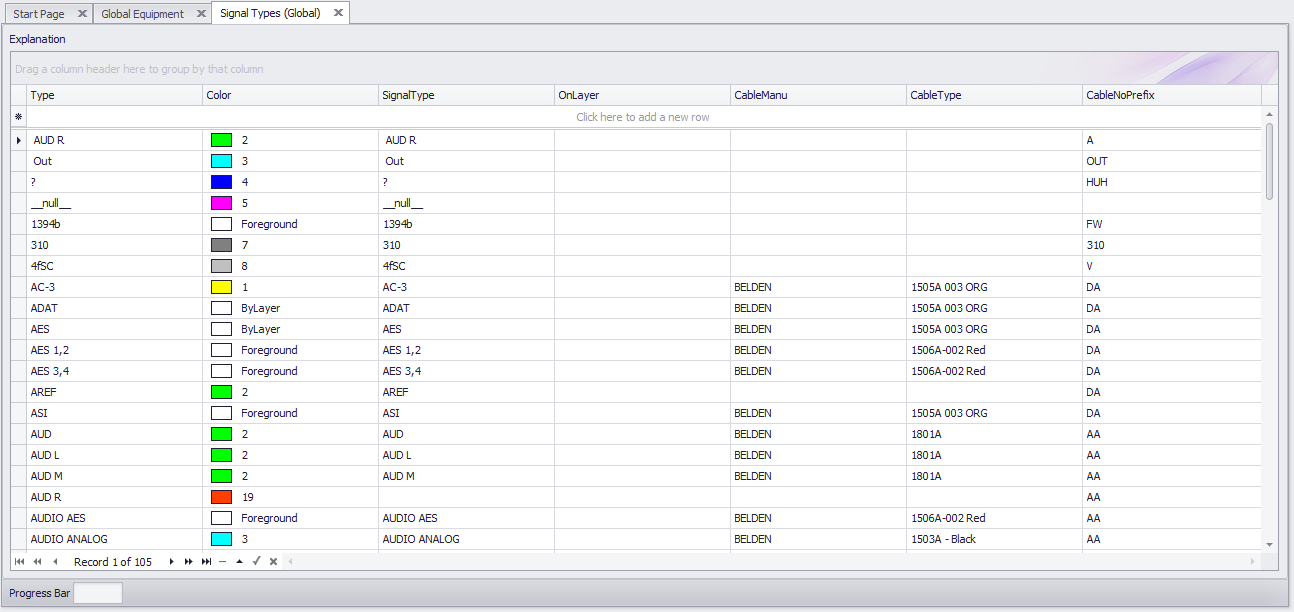

This tool provides access to the Default Signal Types table of the Global Equipment database. Many of the default display behaviors originate here, for instance:

•The color of pins on a block.

•The color of cables.

•The Cable Type associated with the Signal Type.

•The Cable Number prefix.



These values are preempted by the Project Signal Types grid which has priority. If signal type information is required by the application it first looks to the project, then to the default.



Prerequisites

1.None



Related Topics

Signal Types

Grid Basics



Form Options

•New - There is no New button on this grid. The New Record Row appears at the top of the grid:

•Rename I/O Signal Types - Rename the Signal Type in this grid and all I/O in the global database.

•Rebuild Signal Types from I/O - This function scans the Inputs and Output for Signal Types then:

 Checks existing in this grid.

 Add if not found.

 Collection is saved.
