Reference > Forms > Project Data Forms

Databases > Equipment List

Commandline: sys

Explanation

This is the main Equipment List of all SysNames in the project. You can edit and ripple your changes from here.

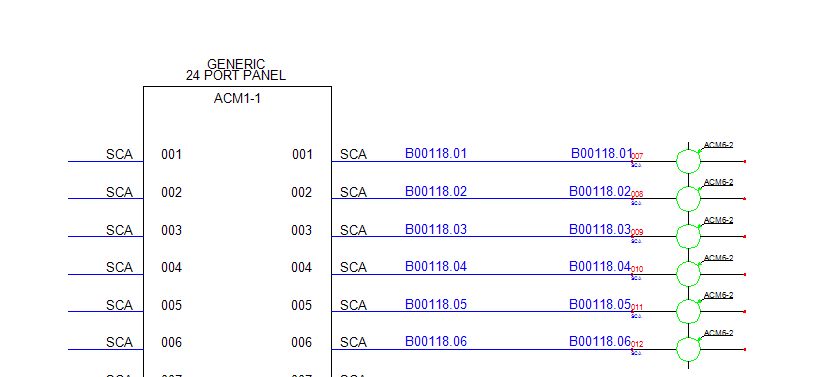

This grid contains a Visualizer that lets you see the data in graphical form. The Visualizer associated with this grid will create a system snapshot of the selected SysName.

Prerequisites

Assigned SysNames

Data Tab Options

•Search - Search the collection for the search term.

•Find All - Clear the search field and return all records.

•Ripple List - Changes you have made that may need to be rippled across the drawing set. The ripple will occur after you save the grid to the database.

Tools

•Attach Document - Any document can be attached to any record. This is useful for storing data sheets, test data, and images.

•Slurp Locations - Collect all location data from the Equipment List and populate the Locations table with it.

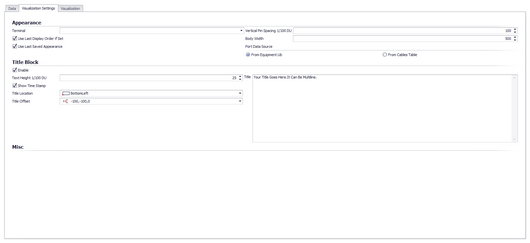

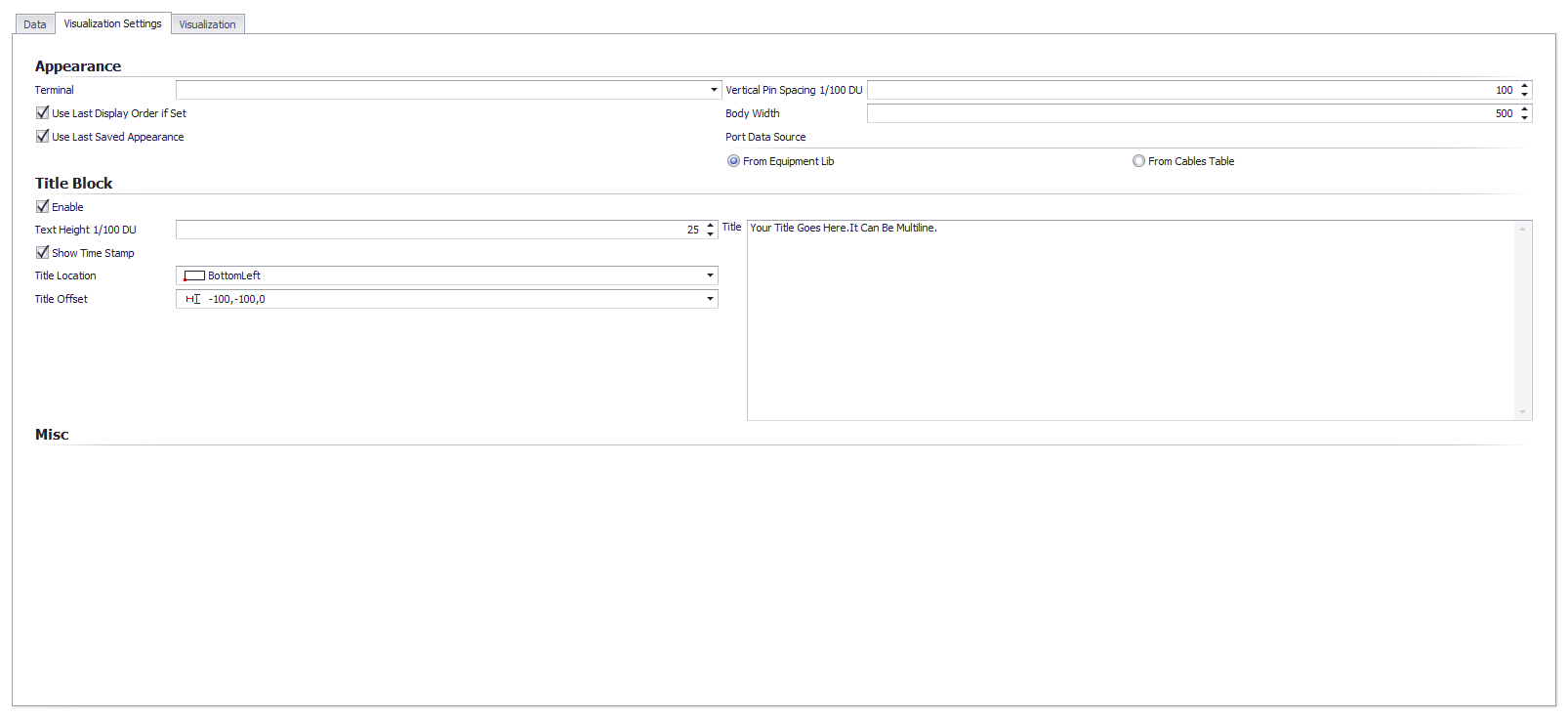

Visualization Tab Options

•Terminal - Select the terminal to which we will attach the cables.

•Vertical Pin Spacing 1/100 DU - How far apart vertically are the ports.

•Use Last Display Order if Set

•Use Last Saved Appearance - Where is the SysName label positioned with reference to the end points of the polyline that represents the cable.

•Body Width -

•Port Data Source - Pull the port data from the Equipment Library which will show all available ports as defined in the Equipment Library or pull port data from the Cable table which will show only ports which have cables attached.
