Reference > Forms > Project Data Forms

frm_cables_data

Databases > Equipment List

Commandline: sys

Explanation

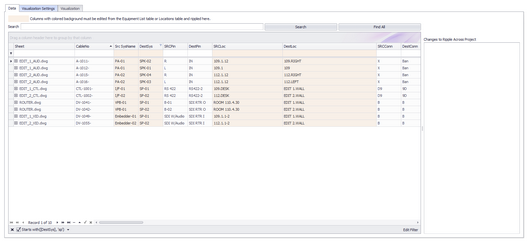

This is the main Equipment List of all SysNames in the project. You can edit and ripple your changes from here.

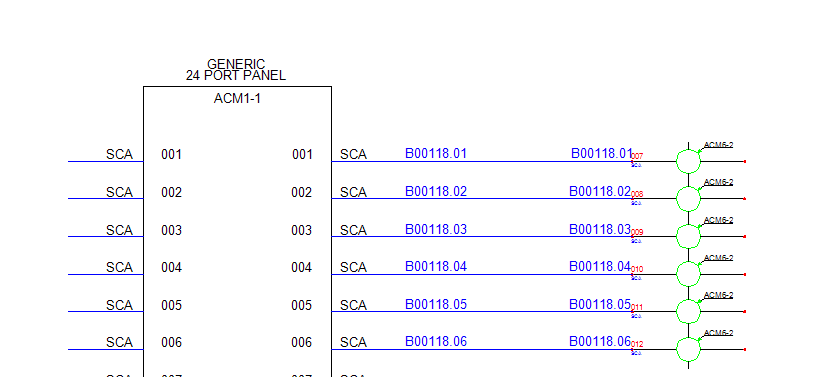

This grid contains a Visualizer that lets you see the data in graphical form. The Visualizer associated with this grid will create a system snapshot of the selected SysName.

snip_sysnames_viz

Prerequisites

Assigned SysNames

Related Topics

Assign SysName

Grid Basics

Data Tab Options

Item	Description
Search	Search the collection for the search term.
Find All	Clear the search field and return all records.
Ripple List	Changes you have made that may need to be rippled across the drawing set. The ripple will occur after you save the grid to the database. Note: you do not need to ripple changes that do not appear in a drawing. For example if you change the Cable Type Manu and Cable Type fields, neither of those fields have a corresponding display in a drawing. So no ripple is required to keep the drawing in sync with the database. If you are unsure - ripple.

Tools
Attach Document	Any document can be attached to any record. This is useful for storing cut-sheet data, test data, and images.
Slurp Locations	Collect all location data from the Equipment list and populate the Locations table with it.

frm_equipmentlist_visualiztionsettings

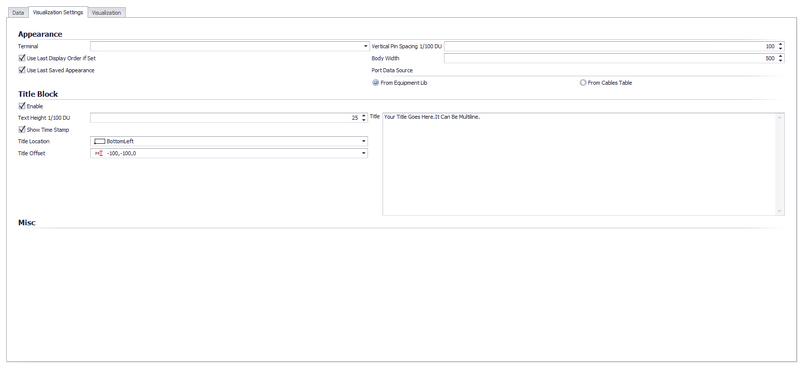

Visualization Tab Options

Item	Description
Terminal	Select the terminal to which we will attach the cables.

Vertical Pin Spacing 1/100 DU	How far apart vertically are the ports.
Use Last Display Order if Set
Use Last Saved Appearance	Where is the SysName label positioned with reference to the end points of the polyline that represents the cable.
Body Width	The text height of the SysName label.
Port Data Source	Pull the port data from the Equipment Library which will show all available ports as defined in the Equipment Library or pull port data from the Cable table which will show only ports which have cables attached.
Title Block Enable	Title Block stuff
Text Height 1/100 DU
Title Location
Title Offset
Title

snip_sysnames_viz

Data Tab Options

Item	Description
Export	Export to file.
Copy To Clipboard	Copy to clipboard
Refresh	Refresh the preview.
