Commandline: circ
Explanation

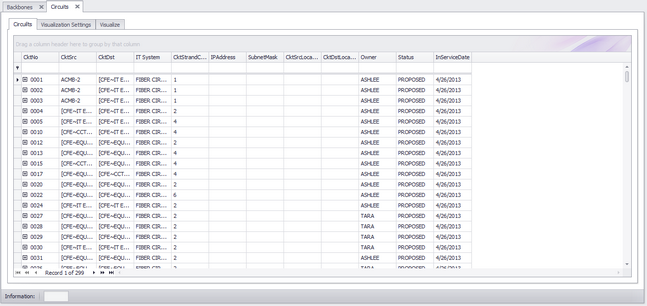

This is the Circuits view. Circuits are collections of cables. In most cases they include jumpers between panels and Backbones. Circuits consist of a set of ordered elements and a strand count.
This grid contains a Visualizer that lets you see the data in graphical form. The Visualizer associated with this grid will create a functional diagram of the selected Circuit.
Prerequisites
Creation of at least one Circuit
Related Topics
Data Tab Options
Item |
Description |
Search |
Search the collection for the search term. |
Find All |
Clear the search field and return all records. |
|
|
Tools |
|
Attach Document |
Any document can be attached to any record. This is useful for storing cut-sheet data, test data, and images. |
Rename Circuit |
Change the name of the Circuit |
Output All Selected Circuits |
Uses the grid selection to determine which Circuits to write out to files. |
Combine Circuits |
Displays the Combine Circuits dialog. |
Visualization Tab Options
Item |
Description |
Source, Middle and Destination Shape |
Choose one of the 16 stock shapes |
Source, Middle and Destination shape Width in (100th DU) |
How wide is it |
Source, Middle and Destination shape Color |
Set the color of the shape |
Source, Middle and Destination shape Descriptor Locations
Drag the descriptor to the location map or to the Hidden Items list to hide. |
|
Backbone Color |
Sets the color |
Jumper Color |
|
Horizontal Cable Color |
|
Merge and Center Text in Body |
|
Text Height |
controls the height of all text in the visualization. |
Layout |
|
Max Columns |
The maximum number of blocks placed before a new row is started below. |
Column Spacing |
The distance between blocks |
Row Spacing |
The Distance between rows |
Title and Comment Block |
|
Show Title |
|
Title Position |
|
Show Time Stamp |
|
Title Text Height (100th DU) |
|
Title Offset |
|
|
|
Title |
You can type whatever you want in this field. In addition the following variables are available: {0} = Circuit Number {1} = It System |
Misc. |
|
Show Attenuation Labels |
Show field survey labels in the CAD preview
|
Show Jumper Length Labels |
|
Show Backbone Length Labels |
|
Show Jumper Numbers |
|
Show Backbone Numbers |
|
Show Length |
|
Visualize Tab Options
Item |
Description |
Export |
Export to file. |
Copy To Clipboard |
Copy to clipboard |
Refresh |
Refresh the preview. |
