This Circuit

The Circuit Name/Number of the circuit that will be appended or inserted into another circuit. This circuit Name/Number will be discarded if successfully appended or inserted.

Appends To

The Circuit Name/Number of the circuit that will be appended to.

Inserts Into

The Circuit Name/Number of the circuit that will be inserted into

Before

Before this SysName

After

After this SysName

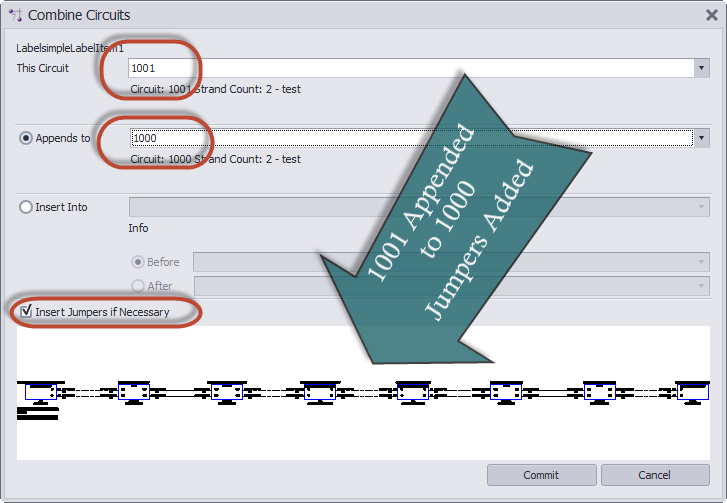

Insert Jumpers if Necessary

It is possible to create collections of cables in a circuit that do not interconnect. If you do not select this option you will create collection of cables that do not interconnect.

Preview

[Commit]

Do it.

[Cancel]

Dump out without any changes.
