Diameter

Applies To:

All product levels

Related Settings:

Draw Diameter Dimension

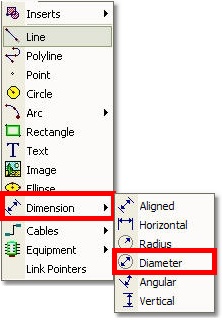

Menu: Tools>Dimension>Diameter

Default Keyboard Shortcut: None

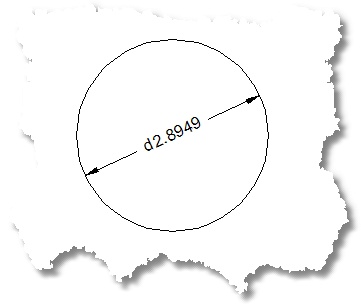

Draw a Diameter dimension by selecting the arc center point and the position (where the text will be displayed).

After you start the command, follow the command line prompts for picking each point that defines the object. As you draw, you can:

Finish the Dimension: Right-click or press <enter>.

To modify the appearance of the Dimension upon completion of the command, you can highlight the new Dimension and manipulate any of its grips.
