Angular
|
Navigation: CAD Basics > Tools > Dimensions > Angular |
|
|
Draw Angular Dimension

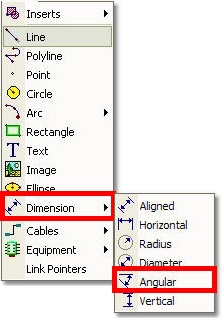

Menu: Tools>Dimension>Vertical
Default Keyboard Shortcut: DDG

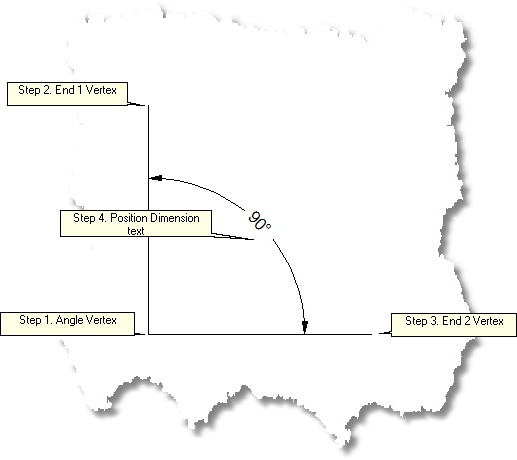

Draw an Angular dimension by selecting the positions as explained below.
|
After you start the command, follow the command line prompts for picking each point that defines the object. As you draw, you can: Finish the Dimension: Right-click or press <enter>. To modify the appearance of the Dimension upon completion of the command, you can highlight the new Dimension and manipulate any of its grips. |
