Applies To:

All product levels

Related Settings:

XOffset

YOffset

Cable Number Text Height

Auto Draw Pointers

Manual Draw

Avoid Other Cables

WireCAD allows you to draw cables between Outputs to Inputs, Inputs to Inputs, and Outputs to Outputs.

Bear in mind that the first point of the cable Polyline will be entered in the Project Cables database as the Source for the cable.

1. Click <Draw Cable>

2. Select the output or Source. Watch the Command Line for prompts.

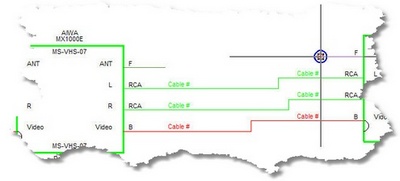

Note: The special OSnap that appears when you are over a WireCAD Connection Point.

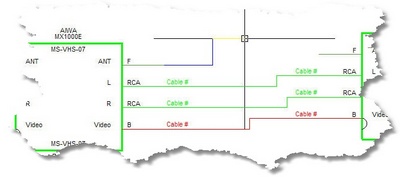

2. Draw from output to input.

3. Click in the input. If you are done, right-click and click <Done>. Otherwise, keep drawing.
