Navigation: The User Interface >
Overview
|
Navigation: The User Interface > Overview |
|

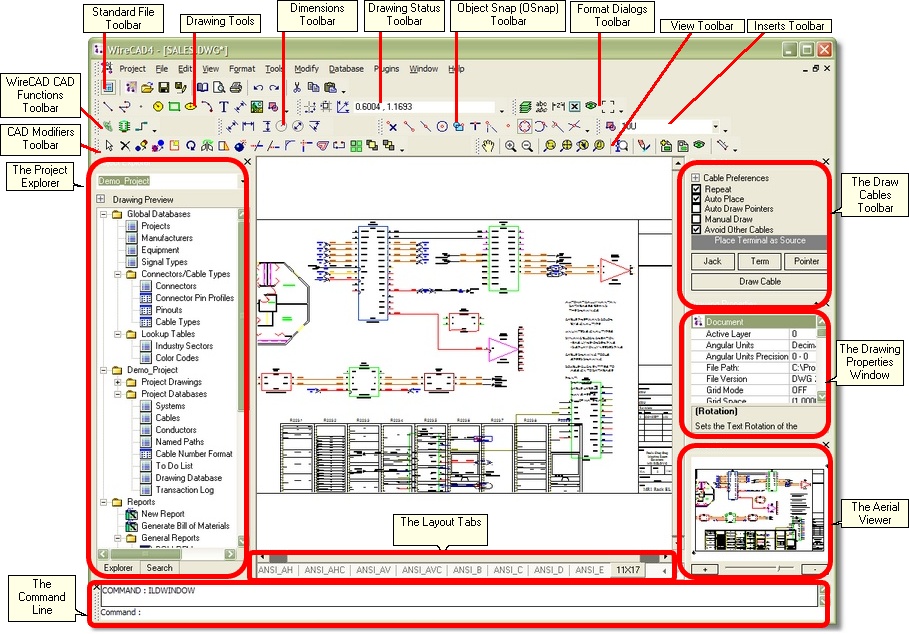

The User Interface as Seen with an Active Drawing
Customizing Toolbars and Keyboard Shortcuts

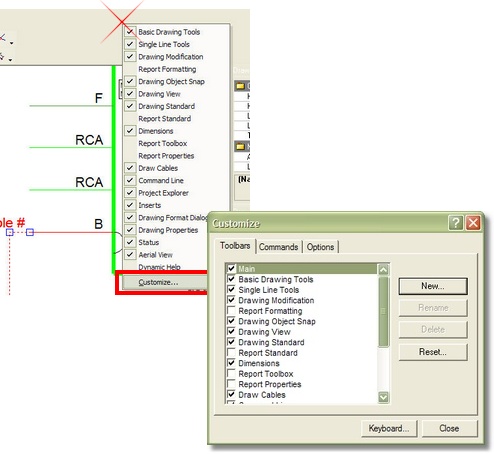

You can customize the appearance and operation of the toolbars by right-clicking in any blank toolbar area to display this dialog:
Customize Toolbars Control Descriptions
Item |
Description |
Toolbars Tab |
|
<New> |
Create a New custom toolbar. Used in conjunction with the Commands tab. Click <New>, then name your toolbar, then switch to the Customize tab and drag the tools to your new Toolbar. |
<Rename> |
Rename your toolbar. |
<Delete> |
Delete your toolbar. |
<Reset> |
Reset the toolbars to the stock settings. |
<Keyboard...> |
Displays the keyboard shortcut dialog:
|
See Also
General Drawing Properties, The Project Explorer, Drawing Cables, CAD Tools, CAD Modifiers, CAD View
