Reporting Overview

Menu: None

Default keyboard shortcut: None

Function:

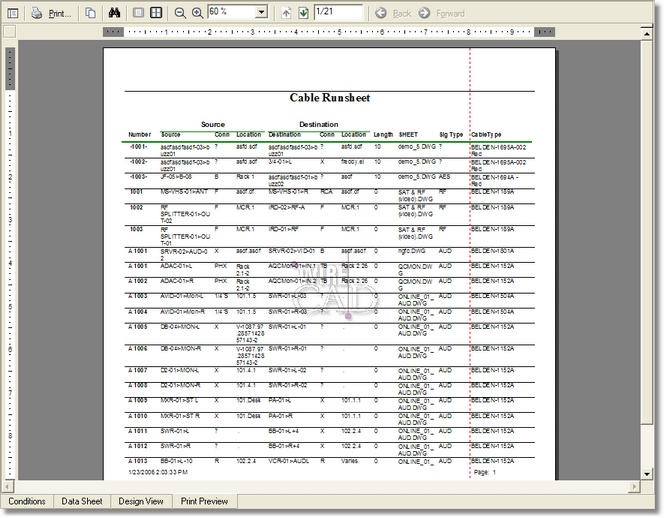

WireCAD provides for database reporting using the Reports form.



WireCAD stores report definitions in the .rpx file format. WireCAD stores these files in two support paths, one for general reports and one for cable labels. Report definitions describe what data will be used and how it will be formatted and displayed. In order to create and access the .rpx files you will need the Project Explorer open to the Reports section.



The default Support Paths for .rpx files are: C:\Program Files\WireCAD5\Reports\General\  and C:\Program Files\WireCAD5\Reports\Labels\,

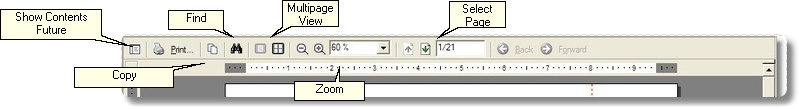

Print Form Controls Description
