Not directly callable.

Default command line shortcut: none

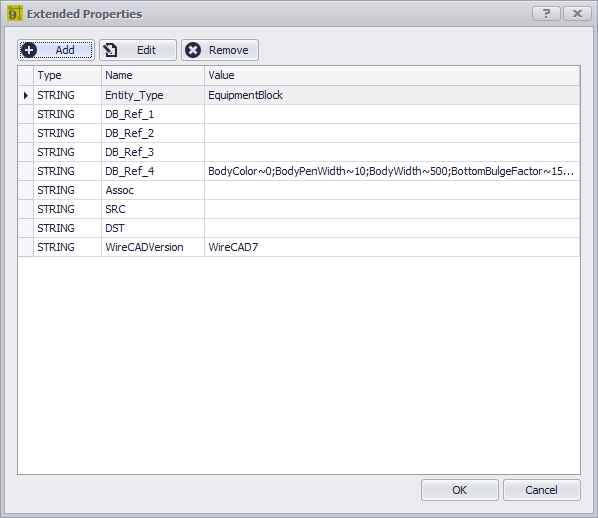

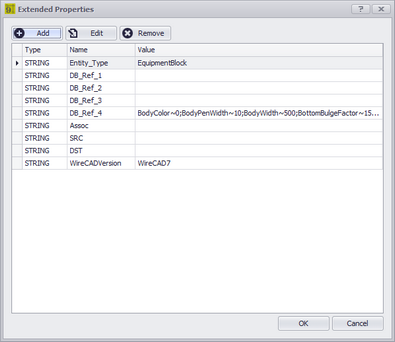

This dialog allows you to add edit and delete extended properties on an entity. This is generally done in code.

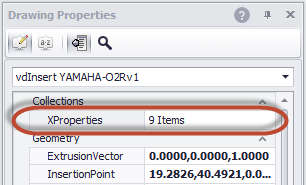

This dialog can be shown by clicking the [...] button on the XProperties row of the drawing Properties Tool Panel.



We recommend that you not edit any of this data.

Applies To:

All entities.





Dialog Options

•Type - Variable type.

•Name - Descriptive text.

•Value - The data.

•Add, Edit Delete - obvious.
