Not directly callable.

Default command line shortcut: none

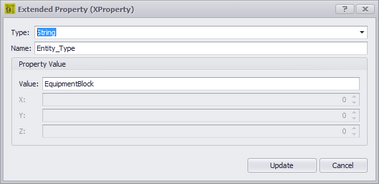

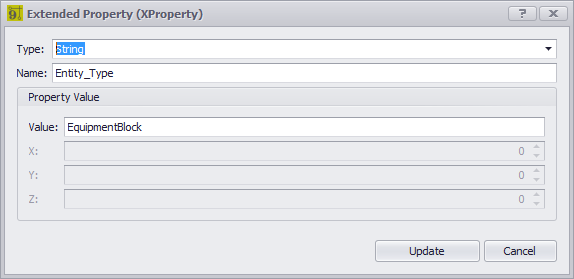

This dialog allows you to edit existing extended properties on an entity. This is generally done in code.

This dialog can be shown by clicking the [Edit] button on the Extended Properties grid.



We recommend that you not edit any of this data.

Applies To:

Select Extended Property of the selected item(s).





Dialog Options

•Type - Variable type.

•Name - Descriptive text.

•Value - The data.

•X, Y, Z - If the data one of the point types.
