<< Click to Display Table of Contents >> Navigation:  Reference > Dialogs > Drawing Dialogs > CAD Dialogs > Text Editor

---

Double-click text entity

Default command line shortcut: none

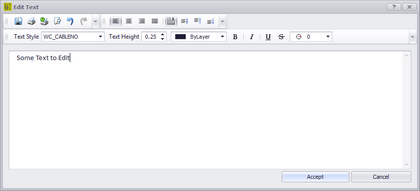

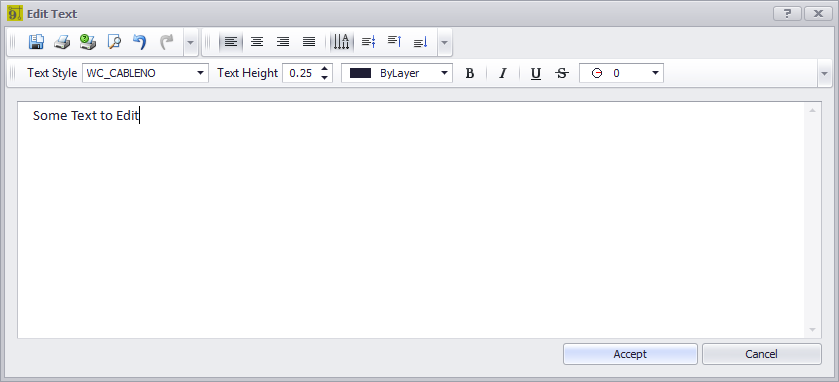

This dialog allows you to edit existing single line text entities.



Applies To:

Selected Single Line Text entity



Related Topics

Text Styles

Layers





Dialog Options

•Save - Write this out to an rtf file.

•Quick Print - Send to default printer.

•Print - Select the printer then print.

•Preview - Preview the printed output before printing.

•Undo, Redo

•Justification

•Text Style - Text entities do not have fonts but rather document based TextStyles. The TextStyle associates the font.

•Text Height - In drawing units.

•Layer - The Layer on which the entity resides.

•Bold, Italics, Underline, Strikethrough

•Rotation - Angle in degrees.
