Used to create an Attribute Definition. Attributes exist in two states.

1.Before a block is created an Attribute is referred to as an Attribute Definition or AttribDef.

2.After a block is created with and AttribDef it becomes an Attribute.

3.AttribDefs are editable and easily  modified. Once added to a block they are harder to change.





Blocks do not limit the number of AttribDefs.



Applies To:

Standard CAD Blocks.





Used For:

Creating editable text in a Insert entity.

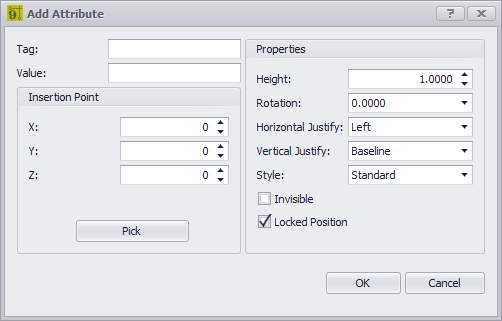

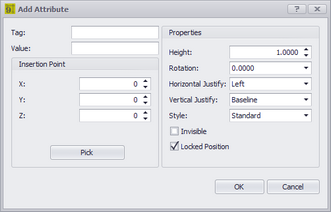

Dialog Options

•Tag - Descriptive text. This is what renders when not included in a block.

•Value - The data that renders as text in the insert.
