This topic focuses on the procedure to display Panels or Equipment in the Map tool.

For a similar procedure using your GPS calibrated dwg drawing see this topic.



Explanation

The WireCAD Map Tool can show your Panels (SysNames). The Location of the SysName will be referenced to the Locations table entry. If the Locations record has GPS data the SysName will be placed. Only Locations that have GPS data will be considered.

The text displayed in the Panel Marker is determined by the Display Format String of the Panles section of the GPS Settings panel.



Related Topics

Display Tab of the Map Tool interface.

Map Tool Dialogs

GPS Settings





1.Open the Map Tool. It can be found in the Project Explorer under the Project Databases section.

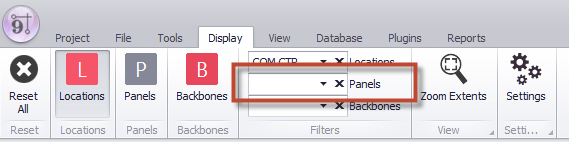

2.Enter any Filter data that you would like to limit the display of Panels (SysNames) by.

3.Click Display > Panels. This will display all Panels (SysName) for which GPS data can be found. If you have an empty filter all Panels with Locations with GPS data will be shown.

4.You are done.



Note: Although we are showing a real world location in these examples the data is completely fictitious. Any resemblance to any data living or dead is purely coincidental.
