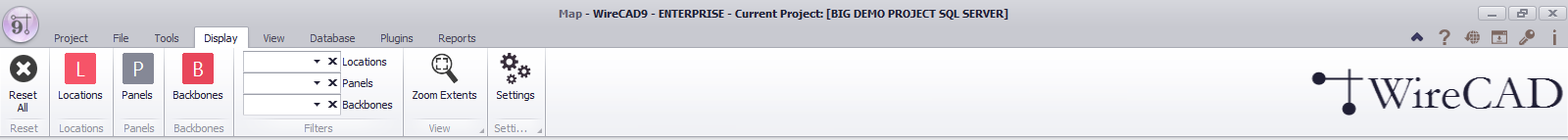

Reference > Ribbon Tabs and Dialogs > Ribbon Tabs > GPS Mapping Tools for Map Tool

Active only when the current environment is the Map tool.

Reset All: Removes all Location, Panel and Backbone Markers from the map.

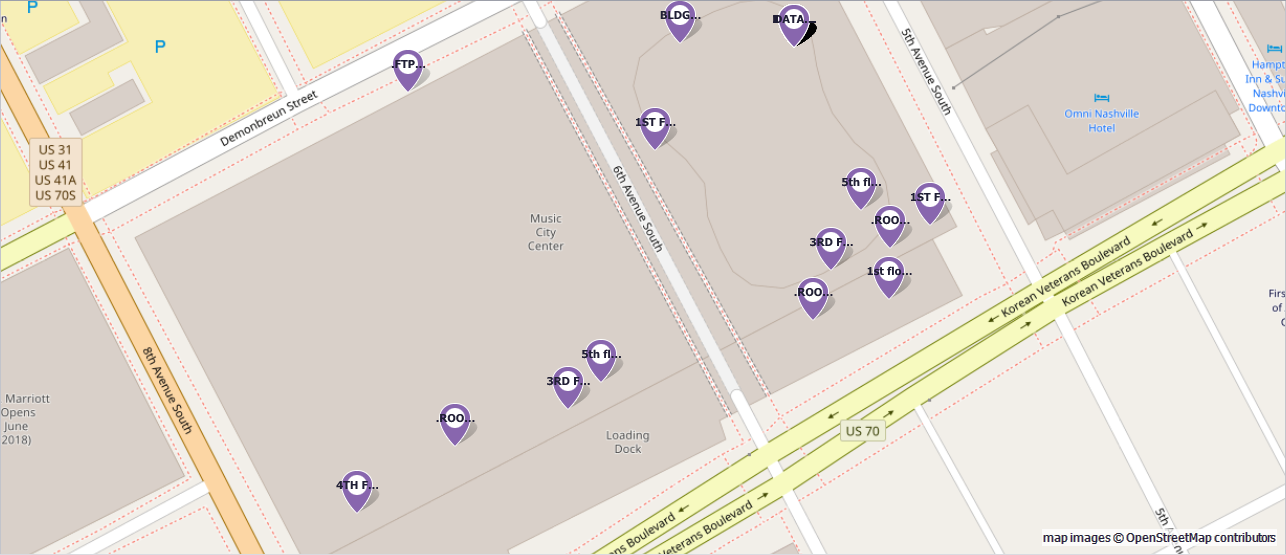

Locations: Toggle the display of Location Markers in the map.

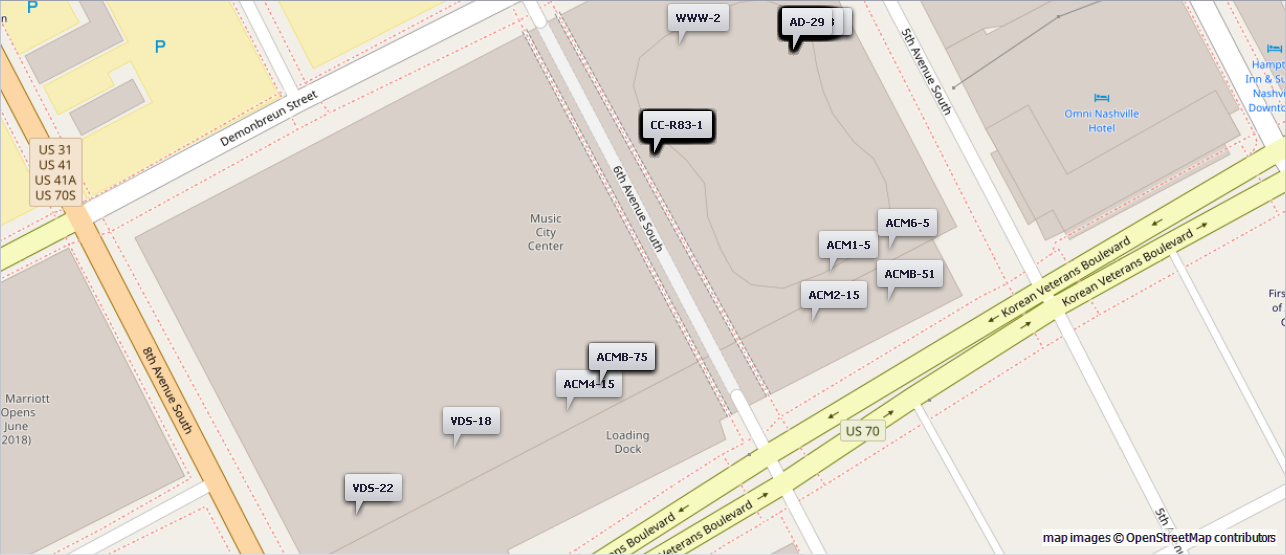

Panels: Toggle the display of Panel Markers in the map. Panel text is determined by the Display String Format of the GPS Settings panel.

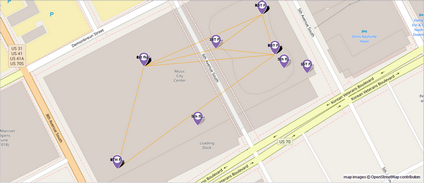

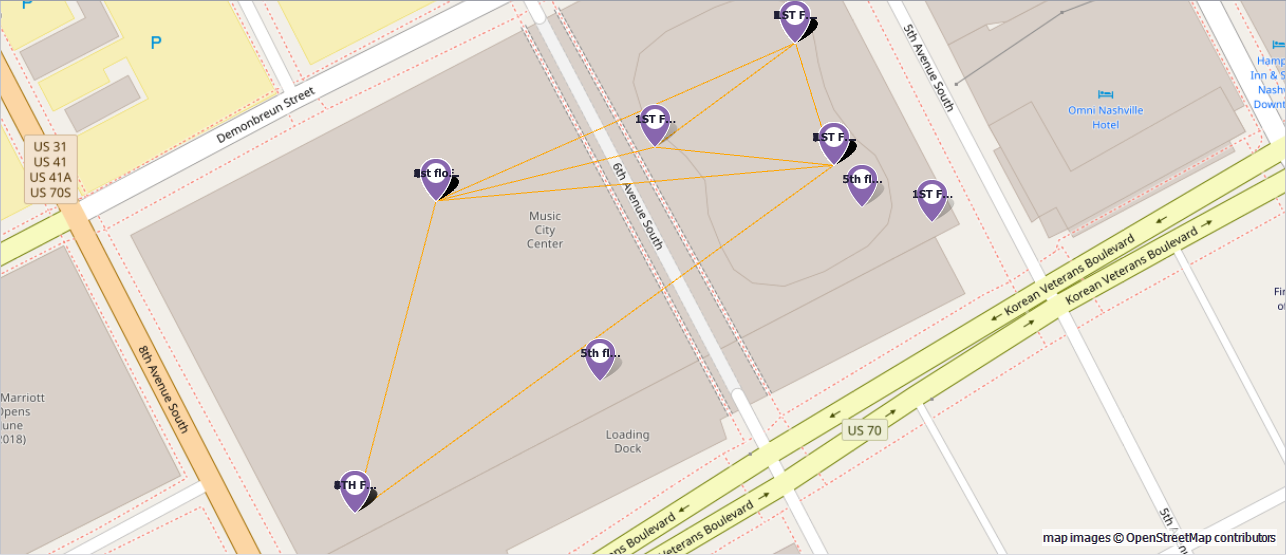

Backbones: Toggle the display of Backbone Markers in the map. Backbone color and line width can be controlled from the GPS Settings panel

Filters:

The filter section is cascading. Selecting a location will cascade to the Panels filter by limiting the Panels shown to those that appear at the selected Location(s). In the same way, the Panels filter will cascade to the Backbones filter.

Locations: Filter by Location.

Panels: Filter by Panels.

Backbones: Filter by Backbones.

Zoom Extents: Show all entities in the map.

Settings: Show the Settings dialog with the GPS Settings panel shown.
