Menu: Plugins>Bulk Block Fixer

Default command line shortcut: blkf



The Bulk Block Fixer utility provides a means by which dwg files may be easily converted for use with WireCAD. The fixer will convert a single drawing or all drawings in a folder.

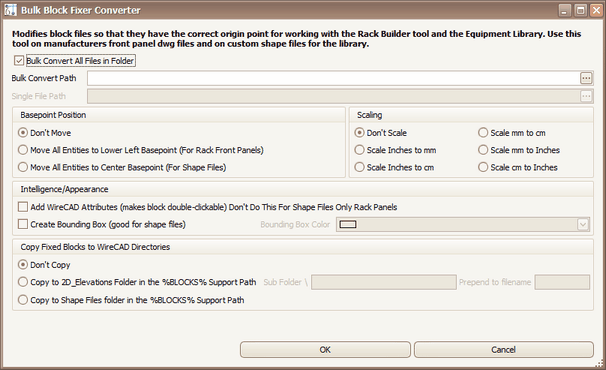

Bulk Block Fixer Dialog

•Bulk Convert All Files In Folder - Checked performs selected options on all files in selected folder.

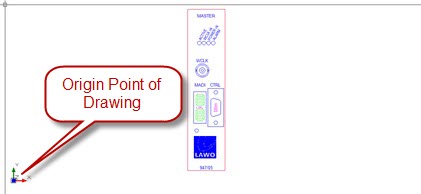

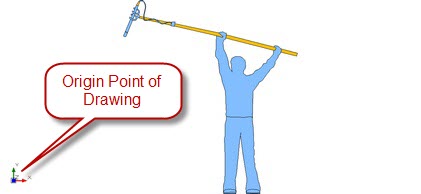

•Basepoint Position -

 Don't Move - Do nothing.

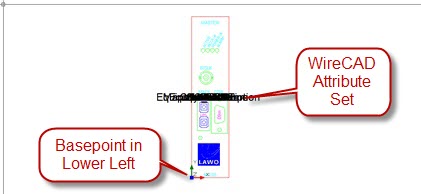

         Move All Entities To Lower Left Basepoint.

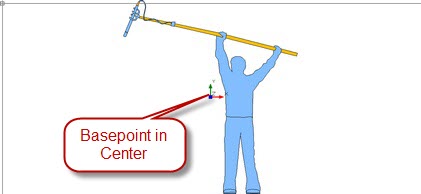

 Move All Entities To Center Basepoint.



•Scaling - Scales all drawing objects based on the selection.

•Intelligence/Appearance

 Add WireCAD Attributes. - Use this function to add the standard WireCAD attribute set to the dwg file. This makes inserted items double-click-able. This is not required, and should not be used, if you are using the dwg file as a DWGIcon or Custom Shape file.

 Create Bounding Box - Creates a rectangle around the entities in the dwg file of the color selected. This is useful for DWGIcons or Custom Shape files



•Copy - Copies fixed block files to the selected directories. \Subfolder and Prepend allow you to modify the location and filename upon copy.
