<< Click to Display Table of Contents >> Navigation:  WireCAD PRO Manual > Included Plugins > Block Extractor

Menu: Plugins>Extract All Blocks

Default command line shortcut: exall

Related Settings:

 None

---

Requires an active drawing.

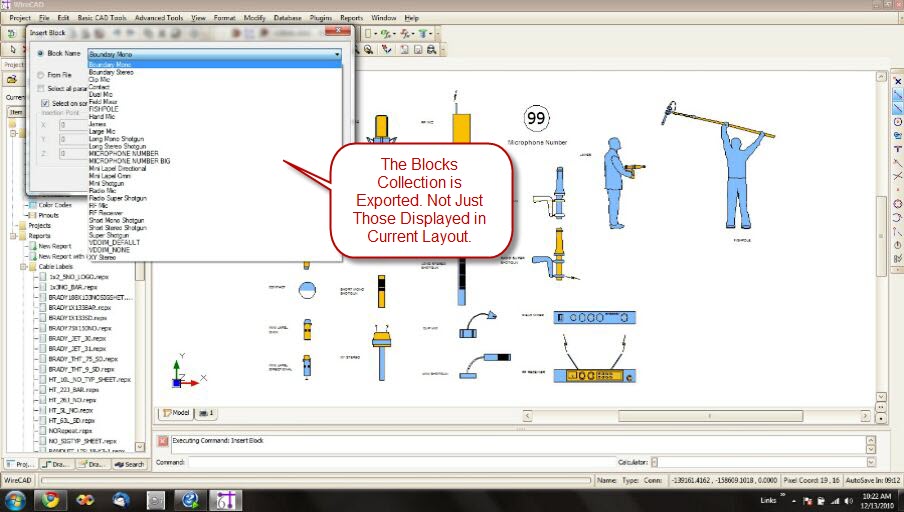

•Extracts all blocks in the current drawing to the folder of your choosing.

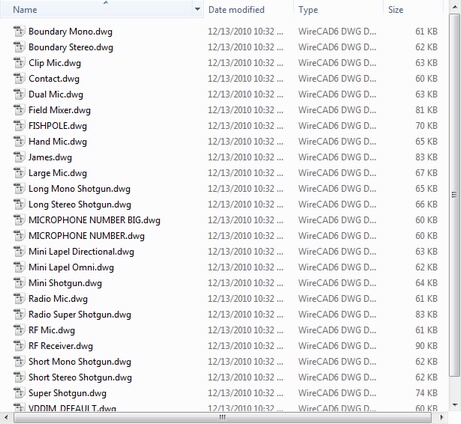

•Files are written out of the drawing as individual dwg files with the name of the block.

•The basepoint of the drawing (origin) is the insertion point of the block.
