1.Obtain the manufacturer's front panel dwg file.

2.Open the file in WireCAD and delete anything that is not related to the front panel view.

3.Close the drawing.

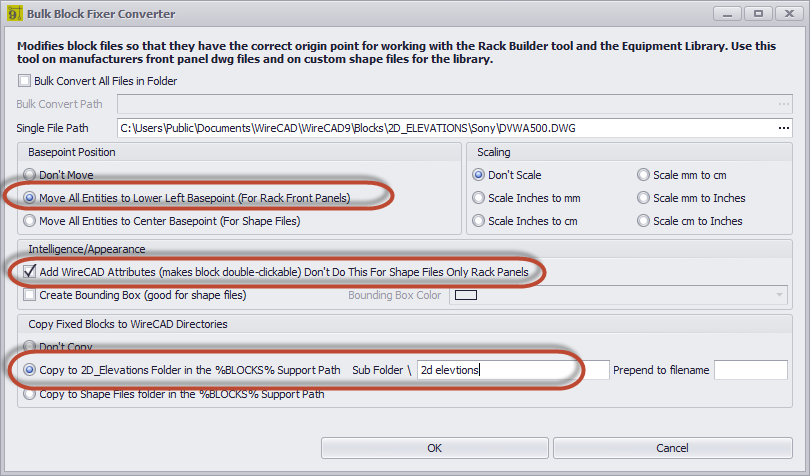

4.Click Plugins > Bulk Block Fixer ...

5.Uncheck Bulk Convert All Files in Folder.

6.Click the Single File Path [...] and browse to the manufacturer's front panel file.

7.Select Move All Entities to Lower Left Basepoint.

8.Select Add WireCAD Attributes.

9.Click [OK].

10.Open the Equipment Library.

11.Find the equipment that we want to use our shiny new front panel

12.Set the Front Panel File to point to our file.

13.Click File > Save.

14.Now you can use it.
