[Ctrl] + Double-click Terminal

Commandline: none



Explanation

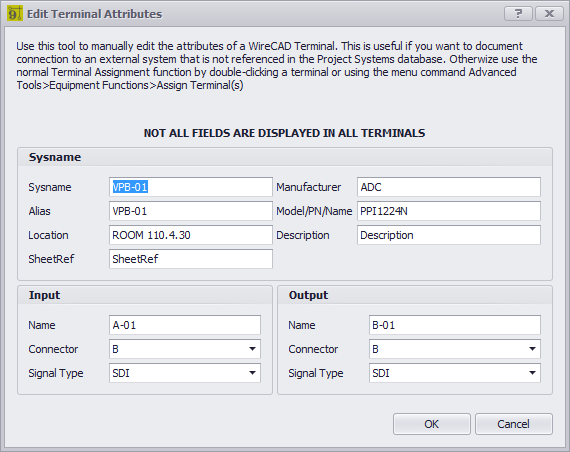

Occasionally you will need to land a cable on a device that is not your responsibility. The cable is yours but the equipment is not.

You can use a Terminal to do this.

Using this method the data in the Terminal will not have a matching entry in the Equipment List.



Note that the Inputs or Outputs section may be disabled if the terminal to which we are assigning this information does not have a CP_IN or CP_OUT to receive the data.





Prerequisites

None.



Related Topics

Understanding Terminals
