<< Click to Display Table of Contents >> Assign Splice |

|
|
<< Click to Display Table of Contents >> Assign Splice |
|

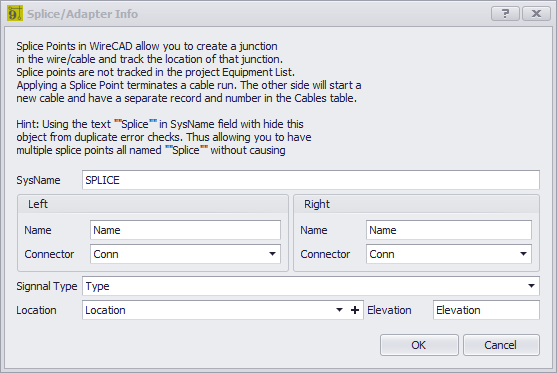

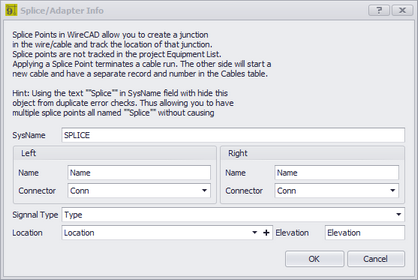

Double-click Splice Point Terminal
Commandline: none
Occasionally you will need to splice a cable through a connection point of some sort such as:
•Terminal blocks.
•Punch downs.
•Butt splices.
You can use a Splice to do this.
Using this method the data in the Splice will not have a matching entry in the Equipment List.
Note that the Inputs or Outputs section may be disabled if the terminal to which we are assigning this information does not have a CP_IN or CP_OUT to receive the data.
Using the string "SPLICE" in the SysName will cause the cable assignment function to ignore duplicate port checks.
Prerequisites
None.
