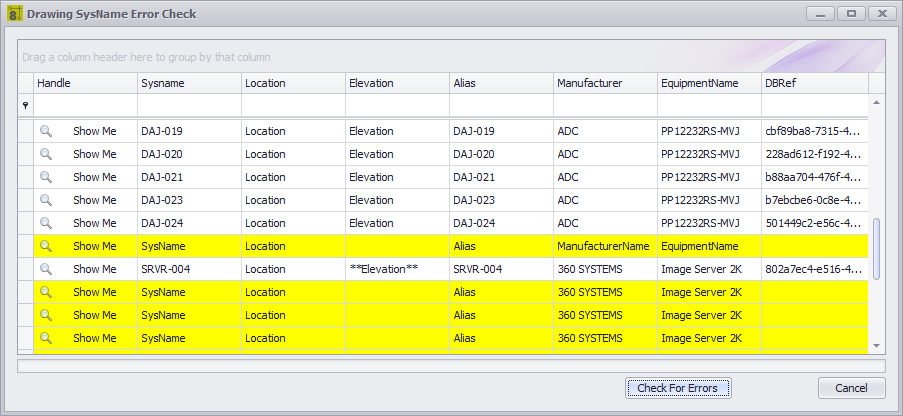

Drawing > Advanced Tools > Drawing SysName Error Check

Commandline: drawingsysnameerrorcheck



Explanation

Check the drawing against the database. Checks the following:

•Retrieves all equipment from the drawing.

•Checks the drawing SysName against the database.

•If matched the record is shown normally. If orphaned or not assigned the background color will be changed.



Dialog Options

•Show Me - Zooms to the selected entity.

•Check for Errors - Scans then fills the grid.
