Double-click Terminal or Select Terminal and Click Advanced Tools > Assign Terminal(s)
Commandline: ats

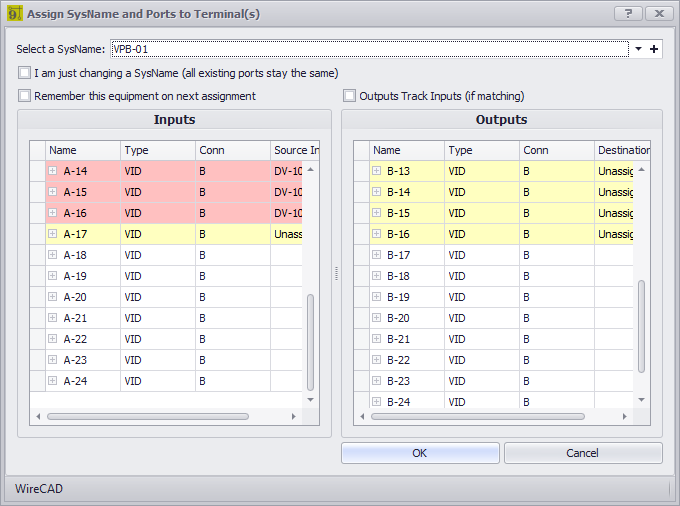

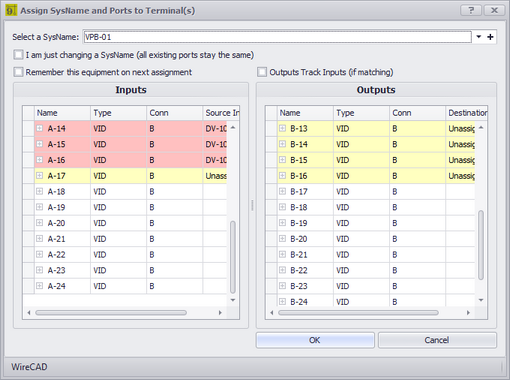

This dialog is presented when assigning a terminal or a selection of terminals. The process is to first select the SysName to use, then select the Inputs and Outputs port.
Note that the Inputs or Outputs grid may be disabled if the terminal to which we are assigning this information does not have a CP_IN or CP_OUT to receive the data.
Record Highlighting
Red - Port assigned to a cable. The Source Info and Destination Info contains the CableNo : SysName>Port info.
Yellow - A cable has been attached to this port somewhere in the project. The Source Info and Destination Info contains the SysName>Port info.
Prerequisites
In order to assign a terminal you must first assign a SysName from which you will select ports.
Related Topics
•Select a SysName - The SysName from which we will select ports.
•I am just changing a SysName (all existing ports stay the same) - Use this if you have already assigned a SysName to a terminal but you want to switch with another SysName.
•Remember this equipment on next assignment - Persist the selected SysName on next Terminal Assignment.
•Outputs Track Inputs (if matching) - Select a matching record from the Outputs list if the string matches the record in the Inputs Name field. The Names must match exactly.
