Menu: Application Menu > Settings[User][CMS User]

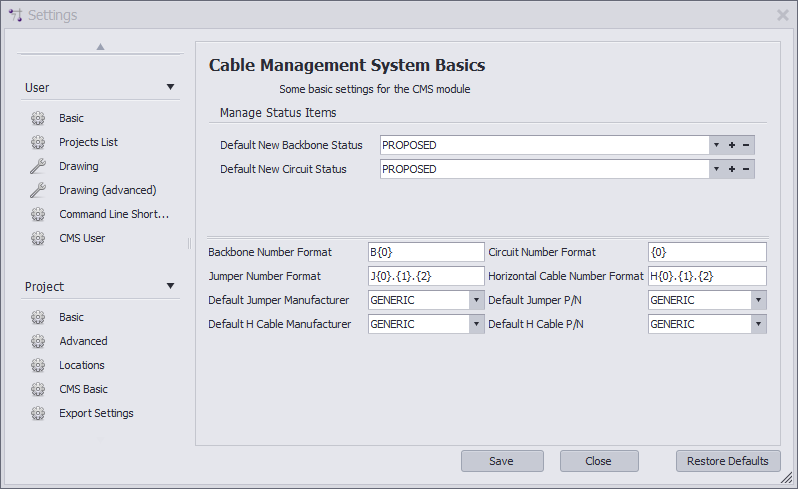

These are the additional project settings that pertain specifically to the CMS module.



Note: You will need to have an open project in order to access these settings.



Note: These settings are project specific and will need to be created for each new project.





•Default New Backbone Status - When creating a backbone, you have the ability to mark a "status" on that backbone such as "In Use", "Proposed" ETC. Selecting a status will cause that to become the default for all backbones in this project. Status Items are defined in the Status Behavior Project Settings panel.

•Default New Circuit Status - Just like above, when creating a Circuit, you have the ability to mark a status on that circuit.

•Backbone Number Format - The variable {0} contains the next number in the Next Numbers grid for Backbones.

•Circuit Number Format - The variable {0} contains the next number in the Next Numbers grid for Circuits.

•Jumper Number Format -

 The variable {0} contains the Circuit base number.

 The variable {1} contains the Strand Number of the circuit for this jumper

 The variable {2} contains the Ordinal Number of the circuit for this jumper.
