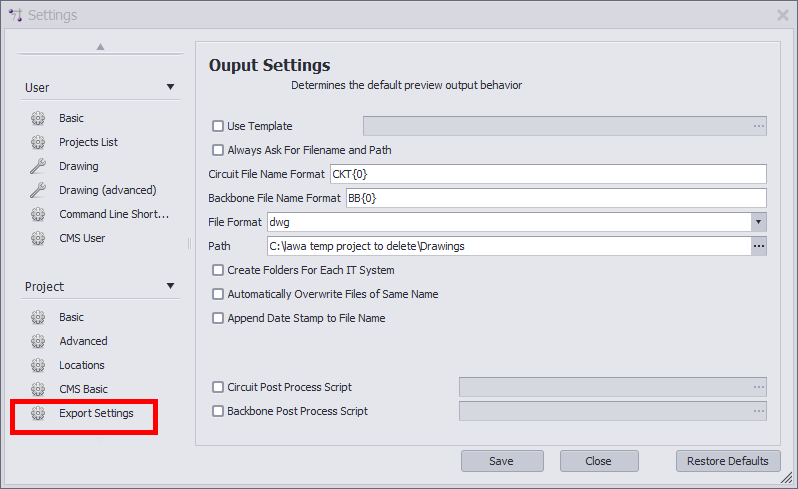

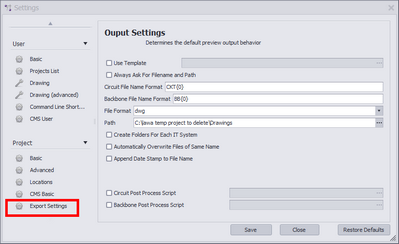

Menu: Application Menu > Settings[Project][Export Settings]





•Use Template - Path to a template drawing that the output will be exported into. Your template drawings can contain any page borders or layouts and settings that you wish.

•Always Ask for Filename and Path - You are involved in the file name selection and path.

•Circuit File Name Format - Sets the file name format for Circuit output. {0} = Circuit Name.

•Backbone File Name Format - Sets the file name format for Backbone output. {0} = Backbone Number.

•File Format - Presets the output format.

•Path - Where do we output.

•Create Folders for Each IT System - Create a new folder for each IT System and output the preview to that folder.

•Automatically Overwrite Files of Same Name - Self-explanatory.

•Append Date Stamp to File Name - Self-explanatory.

•Circuit Post Process Script - Path to a c# file which will be run post export but pre write-to-disk. See the Post Process Scripts topic for more information.

•Backbone Post Process Script - Path to a c# file which will be run post export but pre write-to-disk. See the Post Process Scripts topic for more information.
