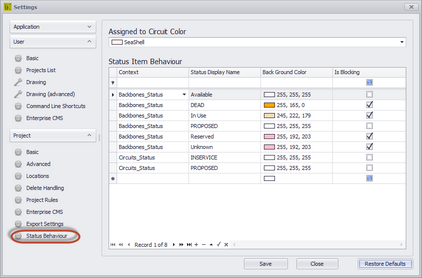

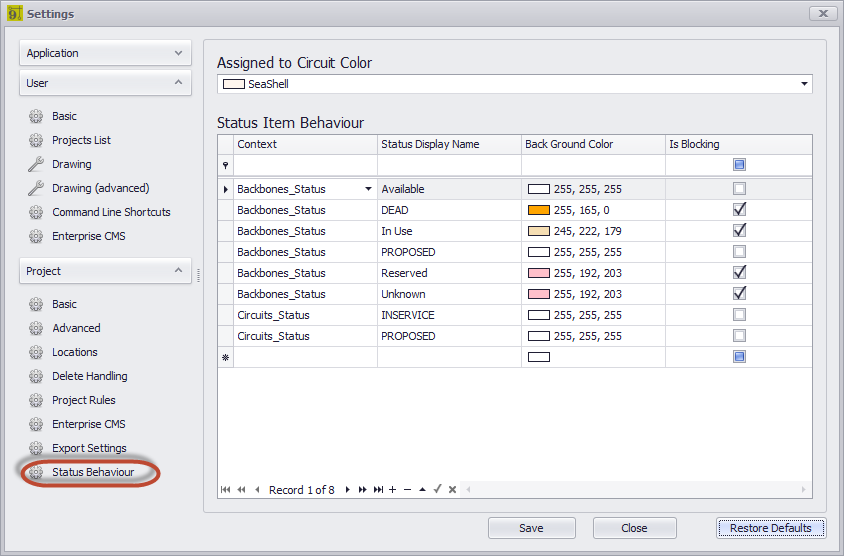

Menu: Application Menu > Settings[Project][Status Behavior]

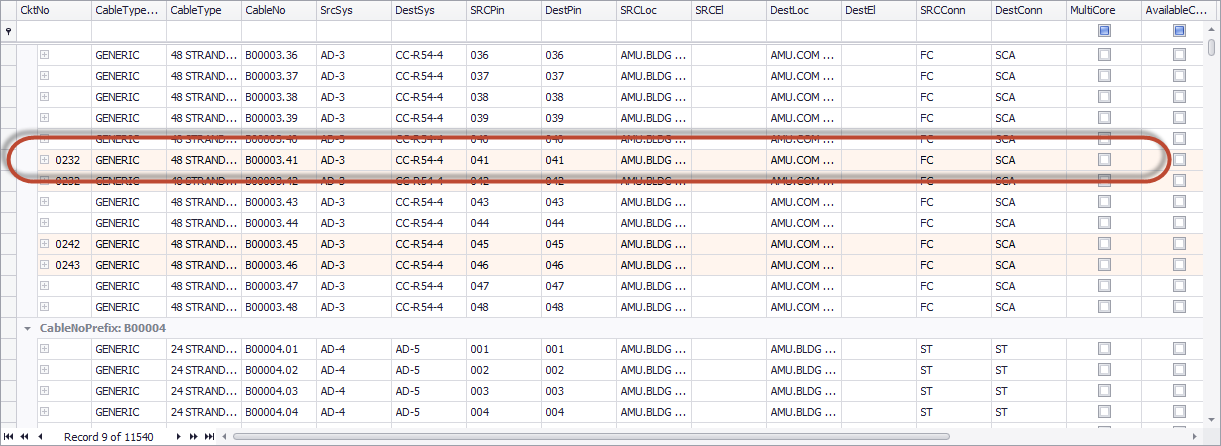

•Assigned to Circuit Color - The color to display in the Backbones grid if the record is assigned to a circuit. Here we see circuit 0232 using the backbone B000003.41.

•Context - Backbones_grid or Circuits_grid.

•Display Name - The name of our status.

•Background Color - Self-explanatory.

•Is Blocking - A blocking status is one that blocks operations from proceeding. For example: if we mark a backbone fiber as DEAD we would not want to use that in a Circuit. If the status item is set as Is Blocking = true then the New Circuit tool will not allow a circuit to involve that strand of fiber.
