Menu: Application Menu > Settings[User][CMS User]

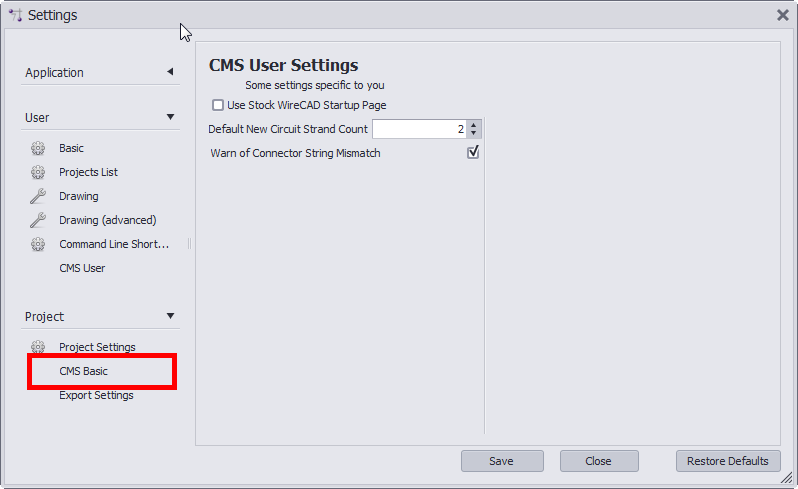

These are the additional user settings that pertain specifically to the CMS module.

•Use Stock WireCAD Startup Page - Not used anymore.

•Default New Circuit Strand Count - When creating a new circuit, a default strand count for jumpers is created. This will change that strand count to a different value.

•Warn Of Connector String Mismatch - Having this box checked will allow a warning message to display anytime WireCAD detects that 2 ports being connected have a different connector type.
