Plan View |

|
|
Plan View |
|
View > Tool Panels > Plan View
Commandline: none
Explanation

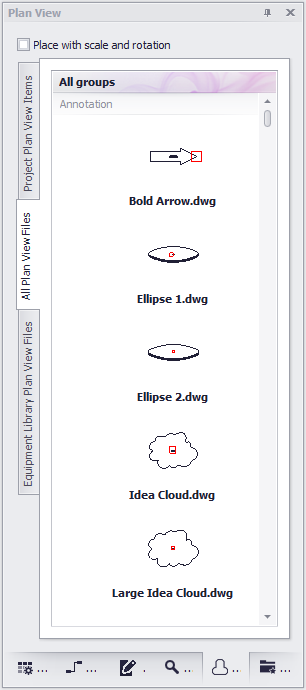

This tool panel provides three tabs. Each tab houses a gallery of Plan View blocks. The tabs are:
| • | All Plan View Files - Enumerates the %BLOCKS%\Plan View Files\ folder tree presenting a preview of each dwg file. Each sub folder will be added as a gallery group and items in that folder added to the group. |
| • | Project Plan View Items - Provides a gallery item for each SysName in the Equipment List. If the SysName's equipment definition has an empty Plan View File, the project Default Plan View File is presented. |
| • | Equipment Library Plan View Files - Shows all Equipment Library items that have data in the Plan View File field. |
Prerequisites
An open project.
An open drawing.
Related Topics
Tool Panel Options
Item |
Description |
Place with Rotation and Scale |
If checked then when placing the selected item in the drawing you will be prompted to scale the X, Y, Z and set the Rotation angle. |
Plan View Galleries |
Click an item to add it to the drawing. Then place (and scale/rotate). |
