View > Tool Panels > Find and Replace

Commandline: none

Explanation

Find and replace text found in any drawing and in editable fields of the project databases. The found list will tell you the context in which the searched text appears.

NOTE: found text may occur in an invisible attribute.

Changiing a port name on a device using the Find and Replace tool requires that you change the text in the following contexts:

•	The visible attribute.

•	The invisible CP_IN or CP_OUT attribute string. This is a pipe delimited string that contains the name\|conn\|type. You must change the name portion of this.

•	Any records that exist in the Project Cables table that reference that port.

Prerequisites

An active project

Related Topics

Tool Panel Options

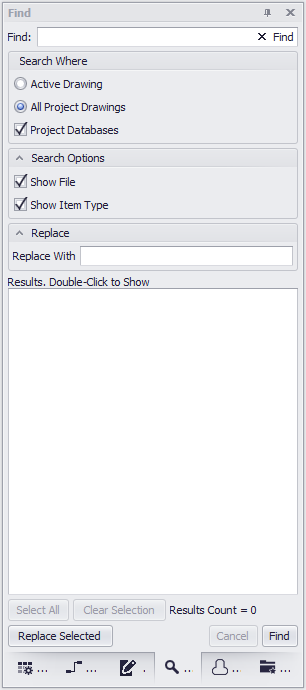

Item

Description

Find

Search Where

•	Only the active drawing.

•	All project drawings

•	Project Equipment list, Project Cables, Project Backbones, Project Circuits.

Search Options

Show/hide the file name and context

Replace With

Some text

Results

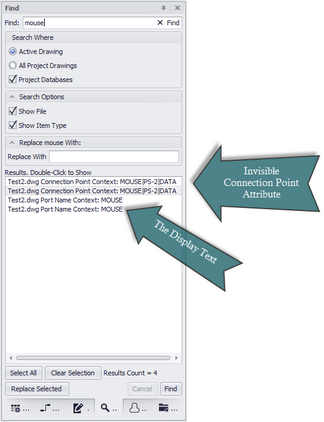

tp_find_replace_found

Displays the context in which the text is found

Replace Selected button

Do the replacement. The drawings and grids will need to be saved to commit the changes.

Find/Cancel

Do it!

Cancel search.
