Drawing Properties |

|
|
Drawing Properties |
|
View > Tool Panels > Drawing Properties
Commandline: none
Explanation

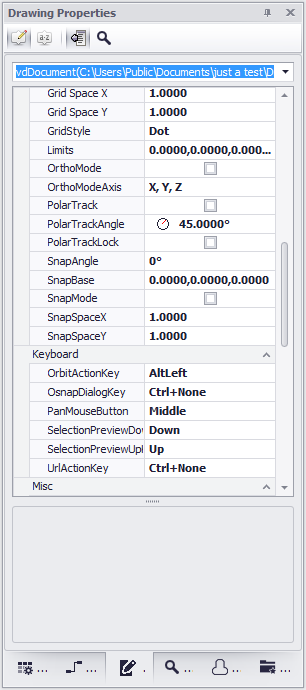

Provides access to the drawing properties. If no selection set exists in the drawing the general document properties are presented. If a selection exists then the common properties of all items in the selection set are displayed for edit. You may also select a single item from the selection set and edit all of its properties.
Prerequisites
An open drawing.
Related Topics
Tool Panel Options
Item |
Description |

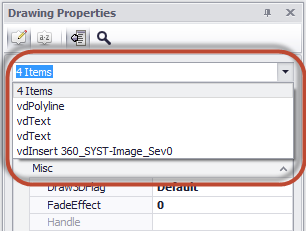

Selected Object |
This combo box displays the selected object and allows you to selected individual items from the drop down.
|
Property grid |
The properties displayed here will all have property editors that are specific to the entity type. |
Sort/Group/Display Descriptions/Search toolbar buttons |
|
