Draw Cables |

|
|
Draw Cables |
|
View > Tool Panels > Draw Cables
Commandline: none
Explanation

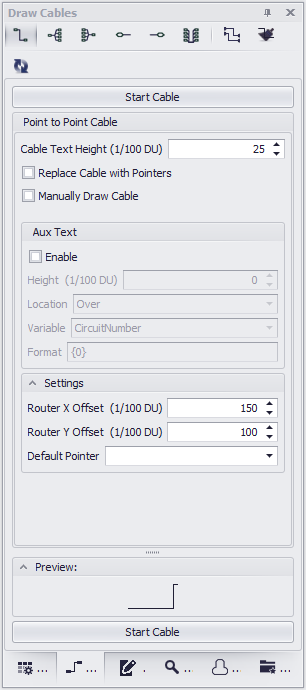

The Draw Cables tool panel is only active when the current environment is a drawing. This tool allows you draw several different types of cables:
| • | One-to-One - One output to one input. |
| • | One-to-Many - One outputs to many inputs. |
| • | Many-to-One - Many outputs to one input. |
| • | Many-to-Many - Many outputs to many inputs. |
| • | Terminal to Point - Drag a Terminal into the drawing an drop it on a connection point in the drawing. This will place the terminal on the left hand side of the block. |
| • | Point to Terminal - Drag a Terminal into the drawing an drop it on a connection point in the drawing. This will place the terminal on the right hand side of the block. |
Prerequisites
Requires and open drawing.
