Favorites |

|
|
Favorites |
|
View > Tool Panels > Favorites
Commandline: none
Explanation
Often times we find ourselves creating the same block or circuit configuration over and over. These times are a great candidate for a Favorite. Creating a Favorite stores the item(s) as a block in the OS in one of three places:
| • | Global - Saves in the %BLOCKS%\Favorites path and may be visible to other user with the same support path. |
| • | User - Saves to your user profile. Visible only to you. |
| • | Project - Saves in the Project\Favorites folder for use by anyone with access to the project. |
Prerequisites
A drawing with the block or configuration you want to save as a Favorite.
A drawing into which you wish to place a Favorite.
Related Topics

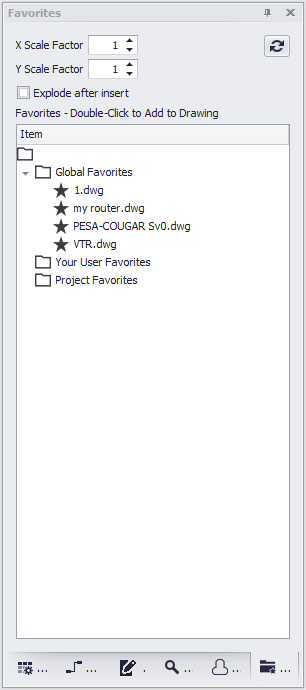

Tool Panel Options
Item |
Description |
Explode |
If you have grouped a system together that includes multiple blocks and cables into a single block. It will need to be exploded back one level to expose the individual WireCAD objects. |
Scale |
|
List |
Double-click to add to the current drawing. |
