dlg_dwg_cable_error_check

Drawing > Advanced Tools > Drawing Error Check

Commandline: dec

Explanation

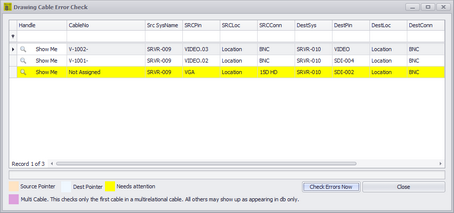

Check the drawing against the database. Checks the following:

•	Retrieves all cables from the drawing.

•	Checks the drawing Cable against the database.

•	If matched the record is shown normally. If orphaned or not assigned the background color will be changed.

Dialog Options
