Circuits Grid |

|
|
Circuits Grid |
|

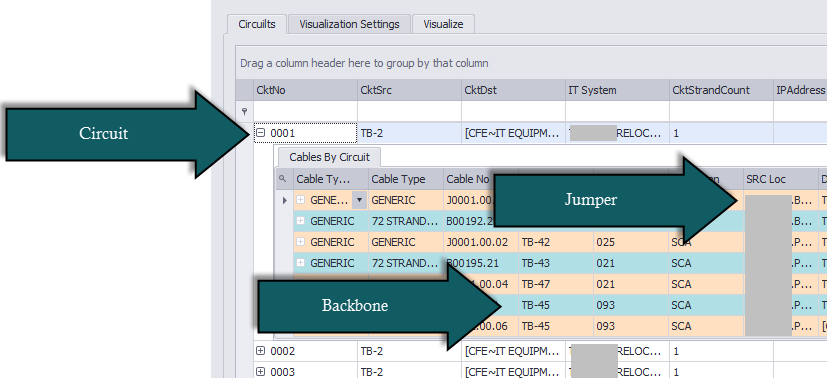

The Circuits Grid presents the overall circuit data in list form with the child cable data attached for view.
Open the Circuits grid by double-clicking the icon in the Project Explorer [Project Databases][Circuits]
Command Line Shortcut: cmscg
Tools |
|
Attach Document |
Useful for storing field survey reports and other documents associated with this circuit. You can attach as many documents as you need. The documents are stored in the database. You can click on the link provided in the grid to launch the document into the system document reader for that file extension (MIME Type). |
Rename Circuit |
Renames a circuit and all of its cables |
Combine Circuit |
See the topic Combining Circuits. |

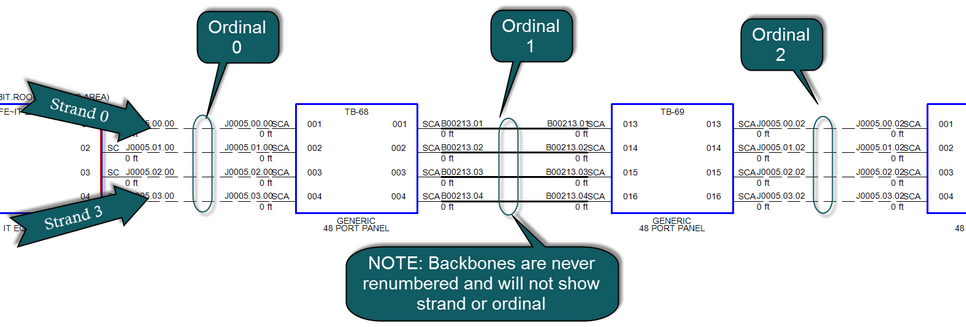

Strand Count and Ordinal Explanation
WireCAD uses the strand and ordinal to know the exact position of a cable in a circuit. Strand 0 will always be the topmost cable in the circuit with Strand n being the bottommost cable in a circuit. Ordinal 0 will be the leftmost set of cables in the circuit with Ordinal n being the rightmost set of cables in the circuit.
