Advanced Topics > SysName Formatting

Menu: Project Explorer>Project Databases>Project SysName Format

Default command line shortcut: fsys

XL FREE does not support changing the format

Allows control of the SysName numbering scheme. Using the SysName Format dialog you can select any field that is associated with the SysName and concatenate it into your own numbering scheme. Each of the fields selected can be formatted and the numbers can be set to sequence off of another field.

Applies To:

XLT PRO

Related Settings:

None

Topics

How it Works

The SysName format tool is used to generate regular expressions that are then used to parse SysName info as well as provide formatting information to masked text boxes.

A note on regular expressions: WireCAD v6 makes extensive use of regular expressions (Regex). Regular expressions are a well documented string parsing tool. Much has been written on them. It is not within the scope of this quick start guide to fully explain regular expressions; however, a google search will tell you more than you ever wanted to know.

Two forms of regular expression are generated: a simplified form that is used as a mask in both the Systems database and in textboxes, and a complex form that aids in the generation of queries to determine the next number in a sequence. The following are both the simplified and complex regex for the default format:

\w{1,6}-\d{1,5}

(?<EQUIPMENTTYPE>\w{1,6})-(?<NUMERICSEQUENCE>\d{1,5})

warning

NOTE: WireCAD supports multiple formats in the same database. In order to accomplish this we use the simplified Regex as a mask. If you have any data in the Project Systems table and you change ANYTHING in ANY Format field you will change the mask and therefore the sequence. You must decide if the change is such that it warrants copying the new simplified Regex to all records in the Project Systems table in order to keep your sequence.

Controls Explanation

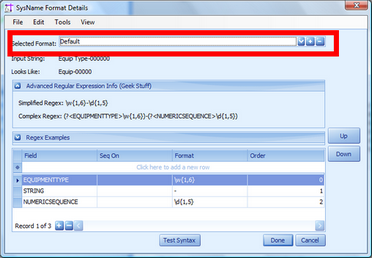

Selected Format

Selected the current SysName format.

Allows addition and deletion of formats as well.

sysfmt1

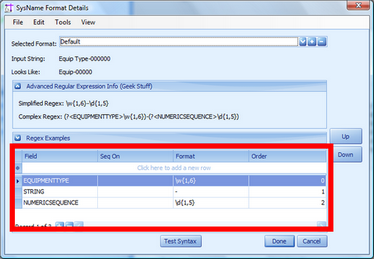

Variable List

Displays the sequence of variables in grid view that will be concatenated into the final SysName.

sysfmt2

Available Variables

Variable	Description	Sequencable	Default Format (regex)
MANUFACTURER	Manufacturer Name	X	\w{1,6}
EQUIPMENTNAME	Equipment Name/PN/Model Number	X	\w{1,6}
DESCRIPTION	The device description as contained in the global equipment library	X	\w{1,6}
EQUIPMENTTYPE	The Equipment Type as contained in the global equipment library	X	\w{1,6}
LOCATION	The location typed in the SysName edit dialog	X	\w{1,6}
ELEVATION	The location typed in the SysName edit dialog	X	\w{1,6}
STRING	any string (usually used for delimiters like dashes (-))		-
NUMERICSEQUENCE	a numeric sequence that starts with the project starting number		\d{1,5}
ALPHASEQUENCE	an alpha sequence that starts at the letter 'a'		\w{4}
USER1	the global equipment library device definition user1 field		\w{1,6}
USER2	"		\w{1,6}
USER3	"		\w{1,6}
USER4	"		\w{1,6}

SeqOn

This variable should sequence on another variable's value.

Order

The order in the list of the variable

More About Regex

The Format field uses regular expressions. The following are some simple examples:

\w{1,6} Any non number, non punctuation string from 1 to 6 characters

\w* Any non number, non punctuation string any length

[a-zA-Z0-9]{5} Lower / Upper case and 0 thru 9 exactly 5 characters

\d{1,5} Digits 1 to 5 digits in length

\d* Digits any length

\\ a slash "\". The \ is the escape character so you need two

- a dash except when in [] or {} then a range.

[a-zA-Z0-9_\-\,]{1,4} Lower / Upper case, 0-9, underscore, dash, and comma.
