Advanced Topics > Cable Number Formatting

Menu: Project Explorer>Project Databases>Project Cable Number Format

Default command line shortcut: fcab

XL FREE does not support changing the format

Allows control of the Cable numbering scheme. Using the Cable Number Format dialog you can select any field that is associated with the Cable Number and concatenate it into your own numbering scheme. Each of the fields selected can be formatted and the numbers can be set to sequence off of another field.

Applies To:

XLT PRO

Related Settings:

None

Topics

How it Works

The Cable Number format tool is used to generate regular expressions that are then used to parse Cable Number info as well as provide formatting information to masked text boxes.

A note on regular expressions: WireCAD v6 makes extensive use of regular expressions (Regex). Regular expressions are a well documented string parsing tool. Much has been written on them. It is not within the scope of this quick start guide to fully explain regular expressions; however, a google search will tell you more than you ever wanted to know.

Two forms of regular expression are generated: a simplified form that is used as a mask in both the Cables database and in textboxes, and a complex form that aids in the generation of queries to determine the next number in a sequence. The following are both the simplified and complex regex for the default cable number format:

\w{1,6}-\d{1,5}-\w*

(?<SIGNALTYPEPREFIX>\w{1,6})-(?<NUMERICSEQUENCE>\d{1,5})-(?<MULTICOREDATA>\w*)

warning

NOTE: WireCAD supports multiple formats in the same database. In order to accomplish this we use the simplified Regex as a mask. If you have any data in the Project Cables table and you change ANYTHING in ANY Format field you will change the mask and therefore the sequence. You must decide if the change is such that it warrants copying the new simplified Regex to all records in the Project Cables table in order to keep your sequence.

Controls Explanation

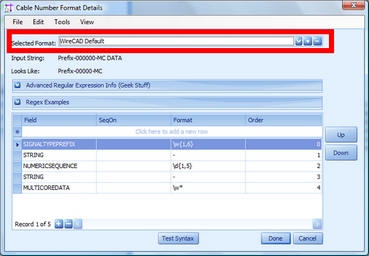

Selected Format

Selected the current Cable Number format.

Allows addition and deletion of formats as well.

fcab1

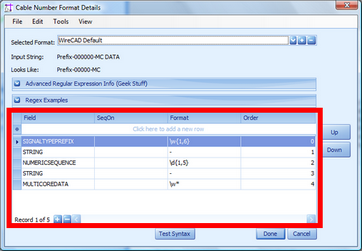

Variable List

Displays the sequence of variables in grid view that will be concatenated into the final Cable Number.

fcab2

Available Variables

Variable	Description	Sequencable	Default Format (regex)
SIGNALTYPE	The signal type associated with the cable	X	\w{1,4}
SIGNALTYPEPREFIX	the signal type prefix associated with the signal type of the cable	X	\w{1,4}
SOURCESYSTEM	The source SysName	X	\w{1,6}
SOURCEPIN	The source port or pin name	X	\w{1,6}
SOURCEALIAS	The source Alias	X	\w{1,6}
SOURCELOCATION	The source location	X	\w{1,6}
DESTSYSTEM	The destination SysName		\w{1,6}
DESTPIN	The destination port or pin name		\w{1,6}
DESTALIAS	The destination alias		\w{1,6}
DESTLOCATION	The destination alias		\w{1,6}
SOURCE_OR_DEST_PIN_IF_JACKFIELD	Not Yet Implemented		\w{1,6}
MULTICOREDATA	Core data as defined in the associated cable type if any		\w*
STRING	any string (usually used for delimiters like dashes (-))		-
NUMERICSEQUENCE	a numeric sequence that starts with the project starting number		\d{1,5}
ALPHASEQUENCE	an alpha sequence that starts at the letter 'a'		\w{4}
USER1	the global equipment library device definition user1 field		\w{1,6}
USER2	"		\w{1,6}
USER3	"		\w{1,6}
USER4	"		\w{1,6}

SeqOn

This variable should sequence on another variable's value.

Order

The order in the list of the variable

Test Sequence

Performs a basic syntax test on the regular expressions

More About Regex

The Format field uses regular expressions. The following are some simple examples:

\w{1,6} Any non number, non punctuation string from 1 to 6 characters

\w* Any non number, non punctuation string any length

[a-zA-Z0-9]{5} Lower / Upper case and 0 thru 9 exactly 5 characters

\d{1,5} Digits 1 to 5 digits in length

\d* Digits any length

\\ a slash "\". The \ is the escape character so you need two

- a dash except when in [] or {} then a range.

[a-zA-Z0-9_\-\,]{1,4} Lower / Upper case, 0-9, underscore, dash, and comma.
