Menu: Database>Equipment Library

Menu: Advanced Tools>Equipment Library

Default command line shortcut: LE

The WireCAD Equipment Library is where you will spend a fair amount of time as you get define equipment that you will use in your designs. This is also where we come to create CAD blocks in our drawings. There are many settings here that let you customize appearance. This chapter is the basics.

Applies To:

All product levels

Related Settings:

None

Equipment Library

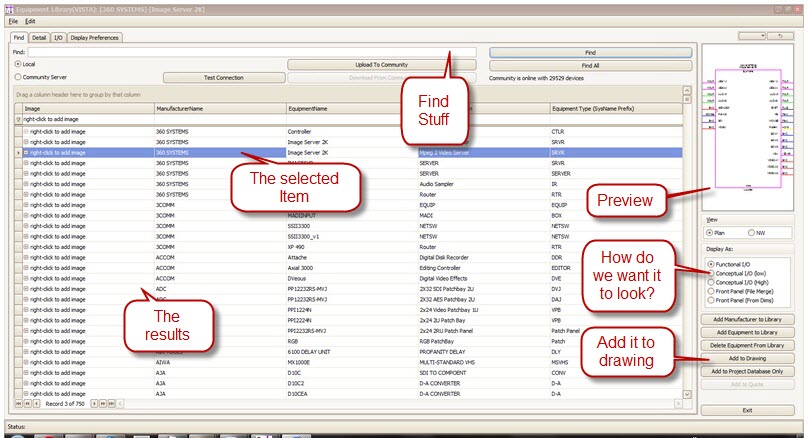

Find Tab

Find equipment definitions in the global database or the Community Server.

Preview the block before adding to drawing.

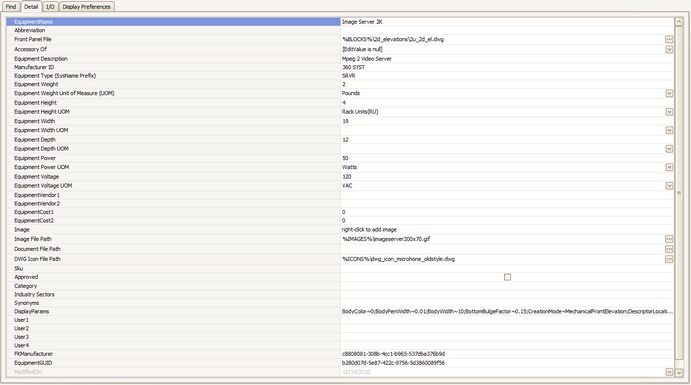

Detail Tab

Edit details. Associate with external files.

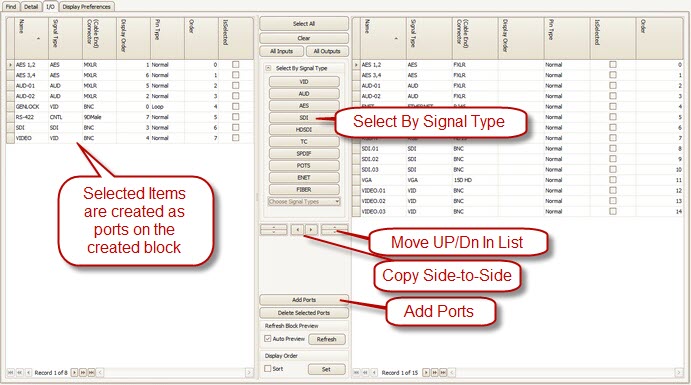

IO Tab

Add, edit, select IO to display in created block.

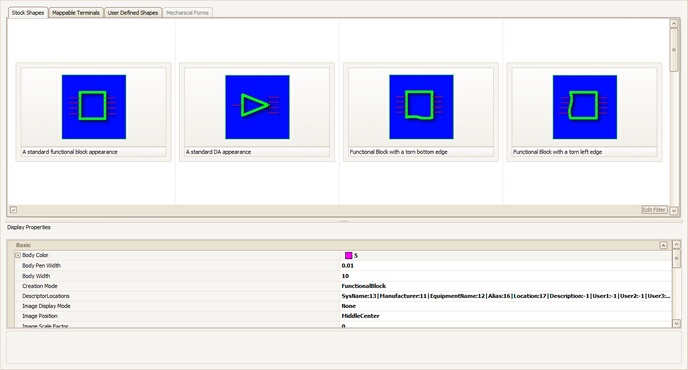

Display Preferences

Controls the appearance of the created block.
