Menu: Database>Equipment Library [Add to Drawing]

Default command line shortcut: le

Create a new equipment block from the library and add it to the current drawing.

Applies To:

All product levels

Related Settings:

None

How To: Add Equipment to Drawings

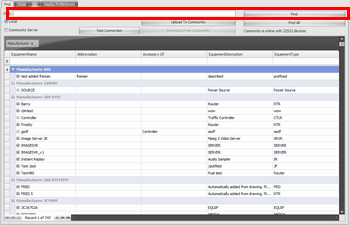

Find the select the equipment definition from the Equipment Library.

Select the IO you want to display in the drawing

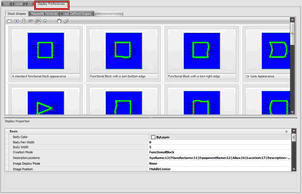

Select the Display mode

Select the Display Preferences. Everything is parametric. There are settings for Body Width, Pin Spacing, Color, etc.

If the Auto Preview function is not set, you may wish to click the Refresh button (either above the preview window or on the IO tab).

or

Click [Add to Drawing] (requires an active drawing).

Place the newly created block in the drawing.
