Creating a New Equipment Definition

 Previous pageReturn to chapter overviewNext page

Menu: Database>Equipment Library[Add Equipment to Library]

Default command line shortcut: le

Create a new equipment definition from which to create functional blocks, rack panels, etc.

Applies To:

All product levels

Related Settings:

None



How To: Add Equipment to the Library

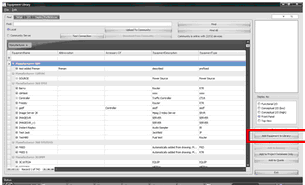

1.Click Database>Equipment Library
2.Click [Add Equipment to Library]

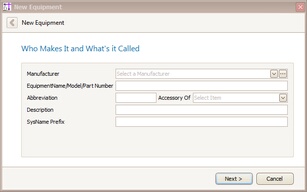

3.Select or add a manufacturer.
4.Enter model/pn/name, description, etc
5.Click [Next >]

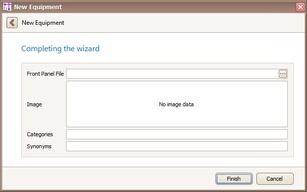

6.This page is optional, but we recommend filling in the Front Panel File field
7.Click [Next >] to add the new definition





clip0039

newequipwiz1

newequipwiz2
1.Select the newly added device from the list. If not found click [Find All]
2.Add the IO by selecting the IO tab

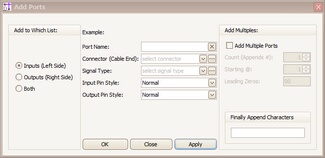

3.Click [Add Ports]
4.Enter a port name, connector, signal type
5.Select Inputs, Outputs table or Both
6.Click [OK] or [Apply] (if you want to leave the form open).

portadder1
