Assigning Unique IDs (SysNames) |

|
|
Assigning Unique IDs (SysNames) |
|
Menu: Advanced Tools>Equipment Functions>Assign SysName Default command line shortcut: as Alternately: double-click the equipment block in the drawing. Assign a unique ID to blocks in a drawing. |
Applies To: All Product Levels Related Settings: |
|
|
|
This function performs the following steps:
| 1. | Gets the next number in the sequence (based on the SysName Format). |
| 2. | Prompts the user for input. |
| 3. | Updates the drawing |
| 4. | Updates the project systems database. |
Note: if the project contains related projects, you will be notified of duplicate SysNames in related projects

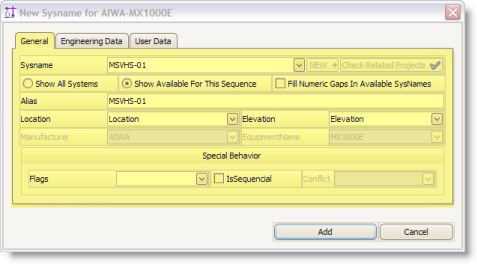

Edit SysNames Dialog |
|
SysName
If you manually enter a SysName it must follow the format defined in the SysName Format tool. The SysName textbox will be masked to help you follow the format |
|

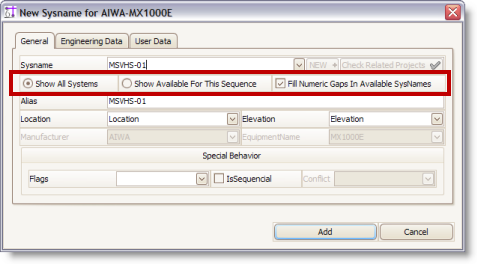

Fill Gaps ... Gaps in sequences can be filled automatically and then selected from the SysName dropdown |
|

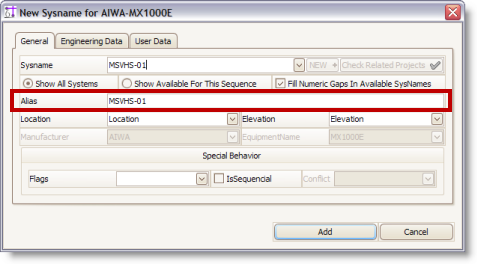

Alias
Alias is functional name for the device. Think of it like the friendly name. The SysName is the unique ID the Alias can be duplicated if desired. |
Example: If the device is a distribution amp and its SysName is DA-120 and it is fed by SVR-01, you may choose to alias it as its source SVR-01. |
|

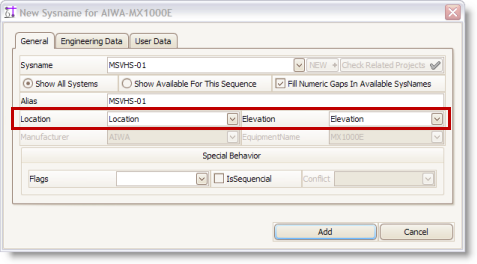

We recommend that you enter a Location and Elevation. Take your best guess. The Rack Builder tool will use your guesses to create a preliminary rack layout that can easily be modified to suit your final design |
Flags |
Various flags to help you sort the equipment in your Systems table. |
IsSequencial |
Not Yet Implemented |
Engineering Data tab |
Various fields to track, IP address, Power Consumption, etc |
User Data tab |
User fields |
