Applies To:

All product levels

Related Settings:

None

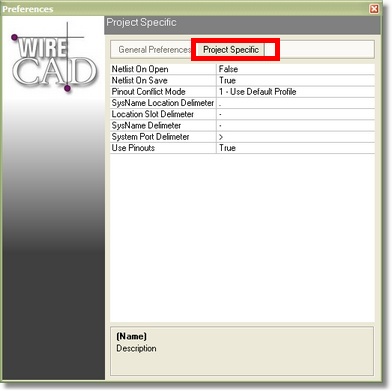

Setting

Relates to

Value

Netlist on Open

Program operation

True/False. True creates Netlists for all drawings when the project is opened.

Netlist on Save

Program operation

True/False. True creates Netlist for a drawing when the drawing is saved.

Pinout Conflict Mode

Cable assignment

Dropdown.

SysName Location Delimiter

System ID assignment

String Value representing the character used to separate the Location and Elevation fields.

Location Slot Delimiter

System ID assignment

String Value representing the character used to separate the Elevation Field from a slot  at the same elevation.

SysName Delimiter

System ID assignment

String Value representing the character used to separate the SysName and SysNum fields.

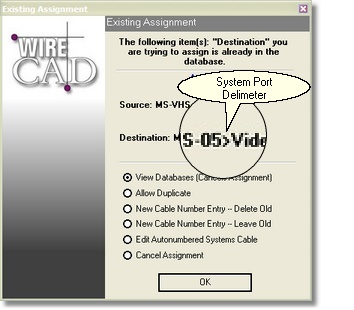

System Port Delimiter

Cable Numbering

Use Pinouts

Cable Number

True/False. True enables the use of conductor level data in the Project Conductors database by utilizing information from specific pinouts on a cable-by-cable basis.
