Importing Product Specifications

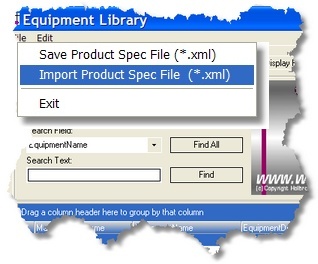

Menu: Tools>Equipment>Equipment Library ~ File>Import Product Spec File [*.xml]

Default keyboard shortcut: NONE

Function:

Imports a WireCAD product specification file. These files are saved in standard xml formats and can be read and edited using a standard text editor. The file format contains all of the Equipment Data as well as the inputs and outputs.

Note: When importing a product specification file for an existing product, the incoming product will be added and a unique version number will be appended.



Exporting Product Specifications

Menu: Tools>Equipment>Equipment Library ~ File>Save Product Spec File [*.xml]

Default keyboard shortcut: NONE

Function:

Exports the selected device product specification to a standard xml file format. The xml file can be read and edited by a standard text editor. The file naming convention follows this format: ManufacturerName.ProductName.xml Though there is no reason for this other than to create an easy reference by manufacturer.



The following is an example Product Spec File for a 360 Systems Image Server 2000:



<?xml version="1.0" encoding="utf-8" ?>

<WCEQUIPDEF Version="1.0">

<EquipDef ManufacturerName="360 SYSTEMS" ManufacturerID="360 SYST" EquipmentName="Image Server 2K"

EquipmentDescription="Mpeg 2 Video Server" EquipmentType="SRVR" EquipmentWeight="2" EquipmentWeightValue="Pounds"

EquipmentHeight="4" EquipmentHValue="Inches" EquipmentWidth="19" EquipmentWValue="" EquipmentDepth="12"

EquipmentDValue="" EquipmentPower="50" EquipmentPValue="Watts" EquipmentVoltage="120" EquipmentVValue="VAC"

DisplayAsDA="False" EquipmentVendor1="" EquipmentVendor2="" EquipmentCost1="0" EquipmentCost2="0"

BlockRef="%BLOCKS%\2D_ELEVATIONS\2U_2D_EL.DWG" Image="" Category="" IndustrySectors="" Synonyms="">

<IO>

<Inputs Count="8">

<Input Name="AES 1,2" Type="AES" Conn="MXLR" DisplayOrder="3" PinType="Normal" />

<Input Name="AES 3,4" Type="AES" Conn="MXLR" DisplayOrder="1" PinType="Normal" />

<Input Name="AUD-01" Type="AUD" Conn="MXLR" DisplayOrder="4" PinType="Normal" />

<Input Name="AUD-02" Type="AUD" Conn="MXLR" DisplayOrder="1" PinType="Normal" />

<Input Name="GENLOCK" Type="VID" Conn="BNC" DisplayOrder="0" PinType="Loop" />

<Input Name="RS-422" Type="CNTL" Conn="9DMale" DisplayOrder="0" PinType="Normal" />

<Input Name="SDI" Type="SDI" Conn="BNC" DisplayOrder="2" PinType="Normal" />

<Input Name="VIDEO" Type="VID" Conn="BNC" DisplayOrder="5" PinType="Normal" />

</Inputs>

<Outputs Count="14">

<Output Name="AES 1,2" Type="AES" Conn="FXLR" DisplayOrder="0" PinType="Normal" />

<Output Name="AES 3,4" Type="AES" Conn="FXLR" DisplayOrder="1" PinType="Normal" />

<Output Name="AUD-01" Type="AUD" Conn="FXLR" DisplayOrder="2" PinType="Normal" />

<Output Name="AUD-02" Type="AUD" Conn="FXLR" DisplayOrder="3" PinType="Normal" />

<Output Name="ENET" Type="ETHERNET" Conn="RJ45" DisplayOrder="0" PinType="Normal" />

<Output Name="KB" Type="DATA" Conn="PS-2" DisplayOrder="0" PinType="Normal" />

<Output Name="MOUSE" Type="DATA" Conn="PS-2" DisplayOrder="0" PinType="Normal" />

<Output Name="SDI.01" Type="SDI" Conn="BNC" DisplayOrder="4" PinType="Normal" />

<Output Name="SDI.02" Type="SDI" Conn="BNC" DisplayOrder="5" PinType="Normal" />

<Output Name="SDI.03" Type="SDI" Conn="BNC" DisplayOrder="6" PinType="Normal" />

<Output Name="VGA" Type="VGA" Conn="15D HD" DisplayOrder="0" PinType="Normal" />

<Output Name="VIDEO.01" Type="VID" Conn="BNC" DisplayOrder="7" PinType="Normal" />

<Output Name="VIDEO.02" Type="VID" Conn="BNC" DisplayOrder="8" PinType="Normal" />

<Output Name="VIDEO.03" Type="VID" Conn="BNC" DisplayOrder="9" PinType="Normal" />

</Outputs>

</IO>

</EquipDef>

</WCEQUIPDEF>
