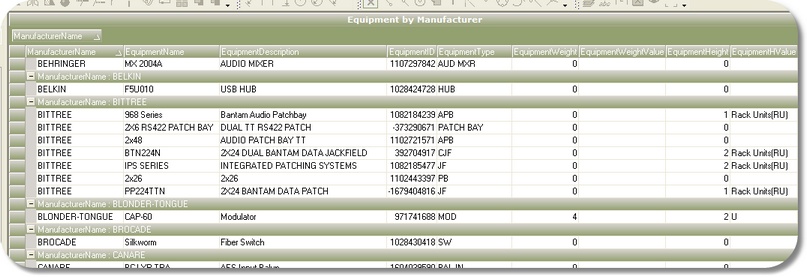

Equipment DataSheet View
Menu: Databases>Equipment Database DataSheet View
Default keyboard shortcut: None
Function:
Presents the Equipment database grouped by Manufacturer Name. This is a good place to edit general information about equipment.
|
Use the Equipment Library to add manufacturers and equipment to the database (you need an active drawing to access the Equipment Library |
Equipment DataSheet Field Descriptions
Field Name |
Description |
Manufacturer Name |
The Manufacturer Name |
Equipment Name |
The Model Name or Number |
Equipment Description |
Description |
Equipment Type |
SysName Prefix Field |
Equipment Weight |
Weight Quantity |
Equipment Weight Value |
Weight Value. i.e. pounds, kilos, etc. |
Equipment Height |
Height Quantity |
Equipment H Value |
Height Value. i.e. Rack Units, Inches, Centimeters. |
Equipment Width |
Width Quantity |
Equipment W Value |
Width Value. i.e. Inches, Centimeters. |
Equipment Depth |
Depth Quantity |
Equipment D Value |
Depth Value. i.e. Inches, Centimeters. |
Equipment Power |
Power Consumption Quantity |
Equipment P Value |
Power Consumption Value. i.e. Watts, VA, KVA |
Equipment Voltage |
Voltage Quantity |
Equipment V Value |
Voltage Value. i.e. AC, DC |
Vendor 1 , 2 |
Vendor Name |
Cost 1 , 2 |
Cost associated with vendor 1 and 2 |
BlockRef |
External CAD Block Reference |
Image |
External Image File Reference Not yet Implemented |
Category |
Categorical search field |
IndustrySectors |
Industry sectors that this equipment touches |
Synonyms |
Synonym search field |
|
This grid can be exported to MS Excel. Projects>Import/Export>Export to Excel: |
).
